HYDAC閥WSM06020W-01系列規格描述
SPECIFICATIONS | |
Operating pressure: | max. 250 bar |
Nominal flow: | max. 19 l/min |
Internal leakage: | Leakage-free |
Media operating temperature range: | min. -20 °C to max. +100 °C |
Ambient temperature range: | min. -20 °C to max. +60 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1 and 2 |
Viscosity range: | 10 to 420 mm2/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
MTTFd : | 150 years (see "Conditions and instructions for valves" in brochure 5.300) |
Installation: | No orientation restrictions |
Materials: | Valve body: free-cutting steel Poppet: hardened and ground steel |
Cavity: | 06020 |
Weight: | Valve complete 0.33 kg |
Electrical data: | |
Type of voltage: | DC solenoid, AC voltage is rectified using a bridge rectifier built into the coil |
Nominal voltage: | 1.5 A at 12 V DC |
Voltage tolerance: | ± 15% of the nominal voltage |
Coil duty rating: | Continuous up to max. 115% of the nominal voltage at 60 °C ambient temperature |
Response time: | Energized: approx. 35 ms De-energized: approx. 50 ms |
Coil type: | Coil…-40-1836 |

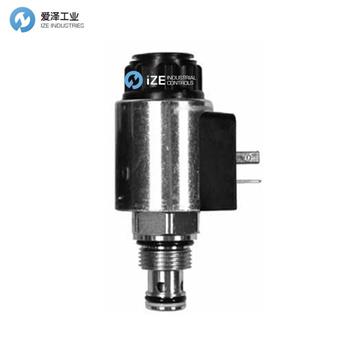

HYDAC閥WSM06020W-01系列介紹
Excellent switching performance by high power HYDAC solenoid
Hardened and ground control piston to ensure minimal wear and extended service life
Low pressure drop due to CFD optimized flow path
Coil seals protect the solenoid system
External surfaces zinc-plated and corrosion-proof
Compact design enables space-saving installation in connection housings and control blocks
大功率HYDAC電磁鐵具有出色的開關性能
硬化和地面控制活塞，以確保最小的磨損和更長的使用壽命
通過CFD優化的流路實現低壓降
線圈密封保護電磁系統
外表面鍍鋅且耐腐蝕
緊湊的設計可節省連接外殼和控制塊的安裝空間

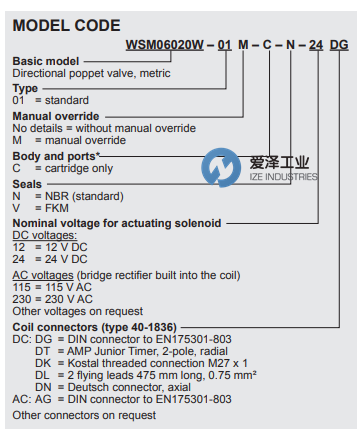

HYDAC閥WSM06020W-01系列型號解析
HYDAC閥WSM06020W-01系列其他常用型號：
HYDAC WSM06020W-01-C-N-24DG 3055971
HYDAC WSM06020W-01-C-N-230AG 3055969
HYDAC WSM06020W-01-01-C-N-05 3055301
HYDAC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC閥WSM06020W-01-01-C-N-05的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HYDAC閥WSM06020W-01系列WSM06020W-01-01-C-N-05規格描述
