HYDAC閥WSM06020W-01系列規格描述
SPECIFICATIONS | |
Operating pressure: | max. 250 bar |
Nominal flow: | max. 19 l/min |
Internal leakage: | Leakage-free |
Media operating temperature range: | min. -20 °C to max. +100 °C |
Ambient temperature range: | min. -20 °C to max. +60 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1 and 2 |
Viscosity range: | 10 to 420 mm2/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
MTTFd : | 150 years (see "Conditions and instructions for valves" in brochure 5.300) |
Installation: | No orientation restrictions |
Materials: | Valve body: free-cutting steel Poppet: hardened and ground steel |
Cavity: | 06020 |
Weight: | Valve complete 0.33 kg |
Electrical data: | |
Type of voltage: | DC solenoid, AC voltage is rectified using a bridge rectifier built into the coil |
Nominal voltage: | 1.5 A at 12 V DC |
Voltage tolerance: | ± 15% of the nominal voltage |
Coil duty rating: | Continuous up to max. 115% of the nominal voltage at 60 °C ambient temperature |
Response time: | Energized: approx. 35 ms De-energized: approx. 50 ms |
Coil type: | Coil…-40-1836 |
HYDAC閥WSM06020W-01系列介紹
Excellent switching performance by high power HYDAC solenoid
Hardened and ground control piston to ensure minimal wear and extended service life
Low pressure drop due to CFD optimized flow path
Coil seals protect the solenoid system
External surfaces zinc-plated and corrosion-proof
Compact design enables space-saving installation in connection housings and control blocks
大功率HYDAC電磁鐵具有出色的開關性能
硬化和地面控制活塞，以確保最小的磨損和更長的使用壽命
通過CFD優化的流路實現低壓降
線圈密封保護電磁系統
外表面鍍鋅且耐腐蝕
緊湊的設計可節省連接外殼和控制塊的安裝空間

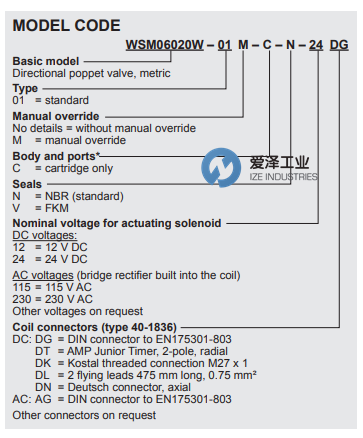

HYDAC閥WSM06020W-01系列型號解析
HYDAC閥WSM06020W-01系列其他常用型號：
HYDAC WSM06020W-01-C-N-24DG 3055971
HYDAC WSM06020W-01-C-N-230AG 3055969
HYDAC WSM06020W-01-01-C-N-05 3055301
