HYDAC閥WSM10120Y-01-C-N230AG規格描述
WSM10120Y series |
01 = standard |
C = cartridge only |
N = NBR (standard) |
230 = 230 V AC |
AG = DIN connector type A to EN 175301-803 |

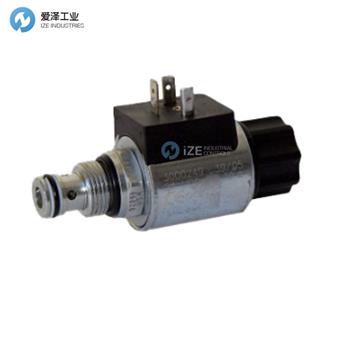

HYDAC閥WSM10120Y系列介紹
The directional valve is a pilot operated valve in poppet style. When de-energized, there is free flow through the valve from port 2 to 1. Flow is not possible in the reverse direction. When the solenoid coil is energized, the valve is closed from port 2 to port 1. In the reverse direction the valve will allow flow from port 1 to 2 when the hydraulic force on the piston overcomes the solenoid force (approx. 2.5 to 10 bar). Please mind: In pilot operated solenoid valves, shift performance and response times depend i.a. very much on pressure drop and volume flow during actuation.
FEATURES
Coil seals protect the solenoid system
Wide variety of connectors available
Excellent switching performance by high power HYDAC solenoid
Exposed surfaces zinc-nickel plated for increased corrosion protection (1.000 h Salt spray test)
方向閥是提升式的先導式閥。斷電時,閥門從端口2到1有自由流動。反向流動是不可能的。當電磁線圈通電時,閥門從端口2到端口1關閉。在相反的方向上,當活塞上的液壓力克服電磁力(約2.5到10 bar)時,閥門將允許從端口1流到2)。請注意:在先導式電磁閥中,換檔性能和響應時間取決于i.a.非常影響驅動過程中的壓降和體積流量。
特征
線圈密封保護電磁系統
提供多種連接器
大功率 HYDAC 電磁閥具有出色的開關性能
外露表面鍍鋅鎳以提高防腐蝕能力(1.000 小時鹽霧測試)

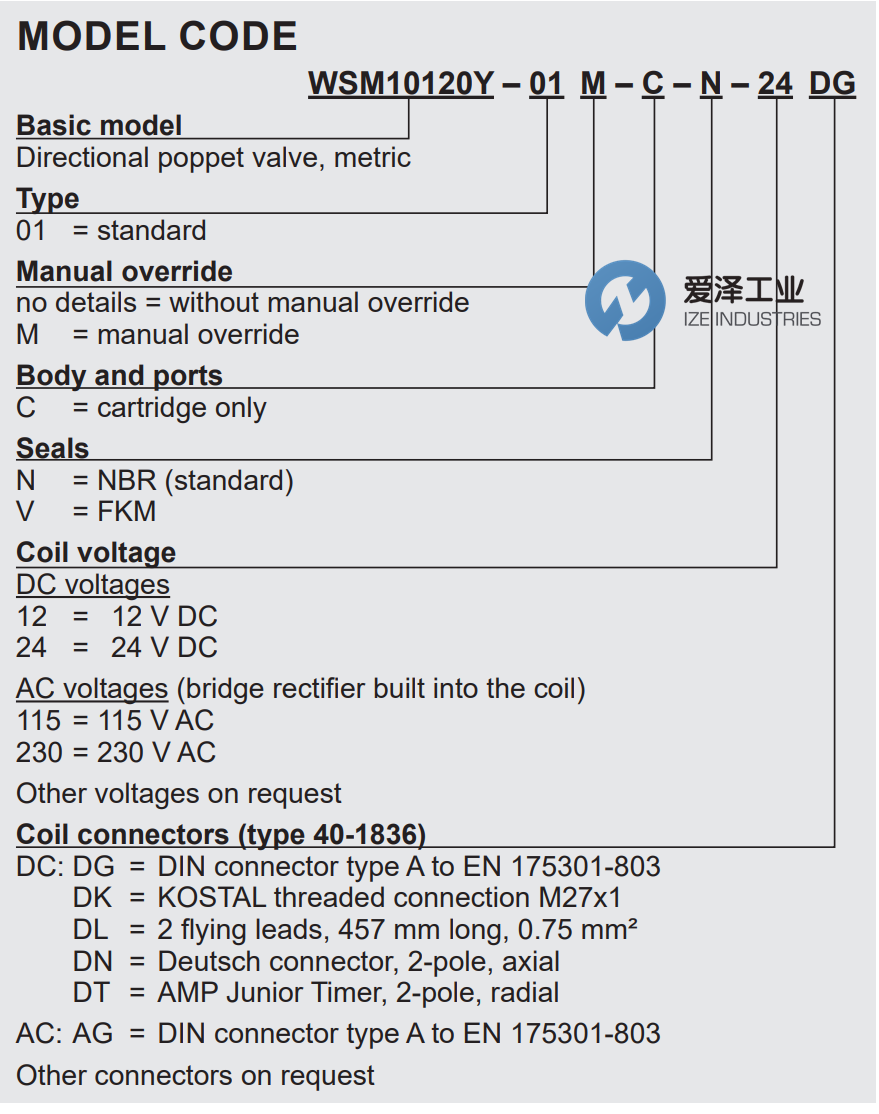

HYDAC閥WSM10120Y系列選型
HYDAC閥WSM10120Y系列其他常用型號:
HYDAC WSM10120Y-01-C-N230AG
HYDAC WSM10120Y-01-C-V-0
HYDAC WSM10120Y-01-C-N-0
HYDAC WSM10120Y-01-C-N-24DG
HYDAC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC閥WSM10120Y-01-C-N230AG的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
