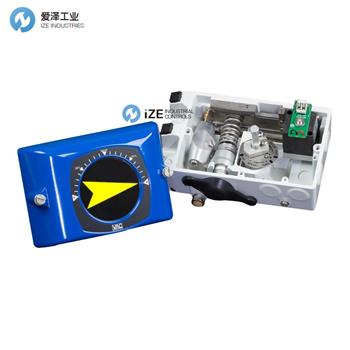

VAC定位器V200E系列參數介紹
Input range: | 4-20mA (Ri＜170ohms) | ||
Supply pressure: | 20-145 1MPa | ||
Linearity error: | <1.0% f.s. | ||
Hysteresis: | <0.6% f.s. | ||
Repeatability: | <0.5% f.s. | ||
Pneumatic Flow | Standard/Low Bleed | High Gain Super High | Gain/High Flow |
Pressure Gain: @87 | 240:1 | 1100:1 | 1100:1 |
PSI (600kPa) acc.to | |||
ISA S75.13 | |||
Air Delivery: @87 | SCFM | ||
PSI (600kPa) | 28.3 | 31.5 | 50 |
Air Consumption: | SCFM | ||
@87 PSI | <.2 | .83 | 1.3 |
Temp Range: | 40o to 185o Fahrenheit | ||
Air Connections: | ?” NPT or G Threads | ||
Gauge port: | 1 /8” NPT or G Threads | ||
Cable entry: | ?” NPT or M20x1.5 or PG 13.5 | ||
Ingress & corrosion protection: Nema 4X and IP 66 Coating: Powder Polyester | |||
Weight | 3.8 lbs | 1.7 kg | |
VAC定位器V200E系列其他常用型號：
VAC V200
VAC V200E
VAC V200E-N-D1-90-B-C1-SHG-Fb-M
VAC Signal Converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAC定位器V200E-N-D1-90-B-C1-SHG-Fb-M的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.
VAC定位器V200E系列V200E-N-D1-90-B-C1-SHG-Fb-M介紹及選型
