VAC定位器V200E系列參數介紹
Input range: | 4-20mA (Ri＜170ohms) | ||
Supply pressure: | 20-145 1MPa | ||
Linearity error: | <1.0% f.s. | ||
Hysteresis: | <0.6% f.s. | ||
Repeatability: | <0.5% f.s. | ||
Pneumatic Flow | Standard/Low Bleed | High Gain Super High | Gain/High Flow |
Pressure Gain: @87 | 240:1 | 1100:1 | 1100:1 |
PSI (600kPa) acc.to | |||
ISA S75.13 | |||
Air Delivery: @87 | SCFM | ||
PSI (600kPa) | 28.3 | 31.5 | 50 |
Air Consumption: | SCFM | ||
@87 PSI | <.2 | .83 | 1.3 |
Temp Range: | 40o to 185o Fahrenheit | ||
Air Connections: | ?” NPT or G Threads | ||
Gauge port: | 1 /8” NPT or G Threads | ||
Cable entry: | ?” NPT or M20x1.5 or PG 13.5 | ||
Ingress & corrosion protection: Nema 4X and IP 66 Coating: Powder Polyester | |||
Weight | 3.8 lbs | 1.7 kg | |
VAC定位器V200E系列介紹

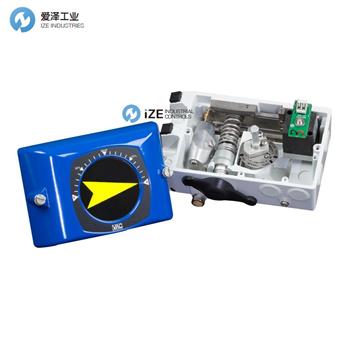

The V200E could be viewed as the first step in building the “all in one” positioner, by adding the basic internal Ip converter module, and thus converting the V200P to an electropneumatic V200E. This Ip module fits very neatly inside the housing, requiring only two screws to secure the module to the housing. Internal air porting takes the necessary filter air to convert the supply air to a 3-15 internal signal. This conversion can be made in minutes, in a shop or in the field. This electropneumatic unit then accepts a 4/20 mA input signal and internally converts that electronic signal to a 3-15 psi output sent into the positioner pneumatic signal diaphragm chamber. Once the module is installed, a 1?4” plug is then “securely” installed in the ? “ pneumatic port on the side of the positioner marked I. This also means that replacing this module is very simple…only minutes to troubleshoot and bring the package back in service. Calibration and troubleshooting are made easier due to the Ip board on this module, with easy access and the ability to generate or read a local signal. As with any positioner, the use of pressure gauges makes calibrating and troubleshooting this unit much easier and more effective. Performance of this VAC V200E electropneumatic is exceptional, allowing this product to be mounted and perform to some of the tightest (highest) industry standards.
通過添加基本的內部Ip轉換器模塊，V200E可以被視為構建“一體化”定位器的第一步，從而將V200P轉換為電動氣動V200E。該Ip模塊非常整齊地安裝在外殼內，只需要兩顆螺釘即可將模塊固定到外殼上。內部空氣端口需要必要的過濾空氣將供應空氣轉換為 3-15的 內部信號。這種轉換可以在幾分鐘內、在商店或現場完成。然后，該電動氣動裝置接受 4/20 mA 輸入信號，并在內部將該電子信號轉換為 3-15 psi 輸出，發送到定位器氣動信號隔膜室。安裝模塊后，將 1?4” 插頭“牢固地”安裝在標有I的定位器一側的 ?“ 氣動端口中。這也意味著更換該模塊非常簡單……只需幾分鐘即可進行故障排除并帶來重新投入使用。由于該模塊上有Ip板，校準和故障排除變得更加容易，易于訪問并且能夠生成或讀取本地信號。與任何定位器一樣，壓力表的使用使得該裝置的校準和故障排除更加容易和有效。這種 VAC V200E 電動氣動裝置的性能非常出色，使該產品能夠安裝并執行一些最嚴格的行業標準。
VAC定位器V200E系列其他常用型號：
VAC V200
VAC V200E
VAC V200E-G-D1-90-A-C1
VAC Signal Converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAC定位器V200E-N-D1-90-B-C1-FB-M的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.
VAC定位器V200E系列V200E-N-D1-90-B-C1-FB-M參數介紹
