ELEKTROGAS電磁閥VMR系列技術參數
Technical specifications | |
Connections | Gas threaded ISO 7/1 from Rp1/4 to Rp2 |
Voltage rating | 230 VAC 50/60 Hz |
Voltage tolerance | -15% / 10% |
Power consumption | see charts |
Ambient temperature | -15°C / +60°C |
Max. operating pressure | 200 mbar (20 kPa) |
Flow capacity | see charts |
Closing time | < 1 second |
Opening time | < 1 second |
Filter (except brass models) | 600 μm, metal mesh |
Protection class | IP54 (EN 60529) |
Cable gland | ISO 16 (EN 50262) for terminal box PG 9 for standard plug |
Coil winding insulation | Class H (200°C) |
Coil thermal resistance | Class F (155°C) |
Materials in contact with gas | Aluminium alloy |
ELEKTROGAS電磁閥VMR系列參數介紹
The VMR type valve is a safety shutting device using auxiliary power supply.
When it is de-energized, the spring pushes on the seal disc, keeping the gas passage closed. Now, the inlet chamber is under the gas line pressure which forces on the disc, increasing the closing function and improving the seal. When the coil is powered the valve opens rapidly, against the strength of the spring and gas pressure. The flow may be adjusted using the regulating screw on the top. If the power supply is shut off, the valve rapidly closes, interrupting the gas flow.
VMR型閥門是使用輔助電源的安全關閉裝置。
斷電時，彈簧推動密封盤，使氣體通道保持關閉狀態?，F(xiàn)在，進氣室處于氣體管路壓力下，該壓力作用在閥瓣上，從而增加了關閉功能和改善密封性。當線圈通電時，閥門會迅速打開，從而抵抗彈簧和氣體的力量壓力。可以使用頂部的調節螺釘調節流量。如果關閉電源，則閥門會迅速關閉，從而中斷氣流。

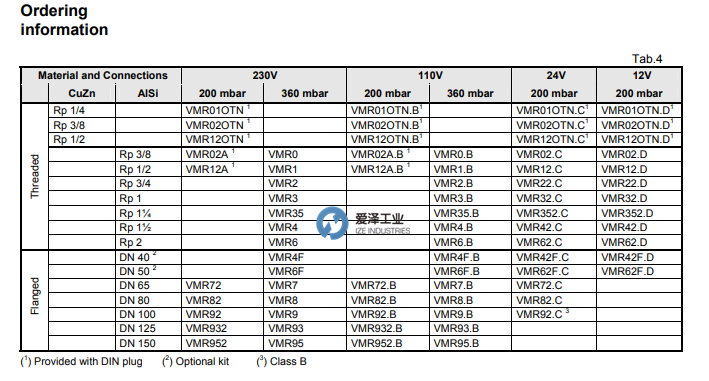

ELEKTROGAS電磁閥VMR系列選型
ELEKTROGAS電磁閥VMR系列其他型號
ELEKTROGAS VMR72
ELEKTROGAS VMR82
ELEKTROGAS VMR92
ELEKTROGAS VMR932
ELEKTROGAS VMR952
