LOWFLOW閥門執行器JRH系列參數特性
Line Size: | 3/8" & 1/2" (DN10 & DN15) |
End Connections | ? Threaded |
Soft Seat Materials for ANSI Class VI Shut-off | Soft Seat Materials for ANSI Class VI Shut-off |
Body Material | ? 316L SST – Standard |
Diaphragm Material | Jorlon |
Maximum Inlet Pressure | 4000 psig (276 bar) @ -20°F (-28,9°C) |
Pressure at Maximum Temperature | 2165 psi @ 350°F (149 bar @ 177°C) with KEL-F seat |
Maximum Pressure Drop | 3000 psi (207 bar) |
Spring Ranges | ? 2 – 10 psi (0,14 – 0,69 bar) |
Flow Characteristics | Cv 0.8 |
Options | Panel Mounting |
LOWFLOW閥門執行器JRH系列描述說明

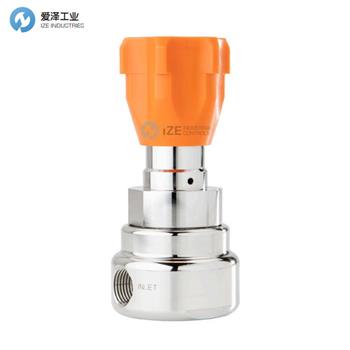

The LowFlow JRH Series of high pressure regulators has the ability to handle high pressures as well as low flows. These valves are typically used in research and sampling systems for general, corrosive and specialty gas service and for non-cavitating liquids. Typical applications include gas chromatography and flame ionization detectors as well as other industrial controls.
Specifications
Top entry design facilitates in-line cleaning and maintenance
Barstock construction guarantees material integrity and surface finish
High flow rate coupled with high rangeability reduces need for reduced trim sizes
Optimized internal volume
Proprietary Jorlon diaphragm material provides exceptionally long life
Soft seat material for ANSI Class VI shutoff
LowFlow JRH系列高壓調節器具有處理高壓和低壓流量的能力。這些閥門通常用于一般氣體，腐蝕性氣體和特種氣體以及非氣蝕性液體的研究和采樣系統。典型的應用包括氣相色譜儀和火焰離子化檢測器以及其他工業控制。
技術指標
頂部入口設計方便在線清潔和維護
棒料結構可確保材料完整性和表面光潔度
高流速和高量程比減少了對精簡尺寸的需求
優化內部體積
專有的Jorlon隔膜材料具有超長的使用壽命
軟閥座材料用于ANSI Class VI關閉

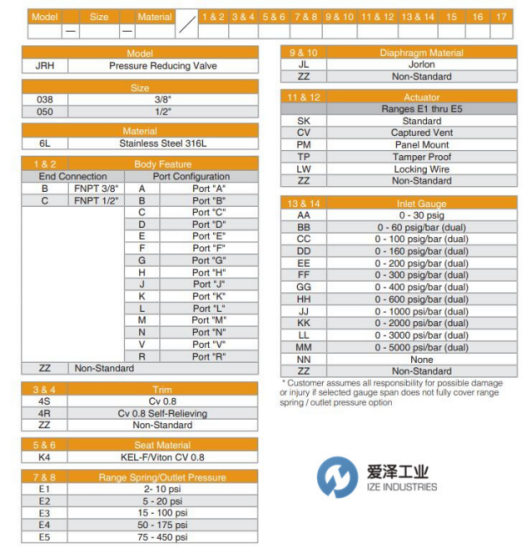

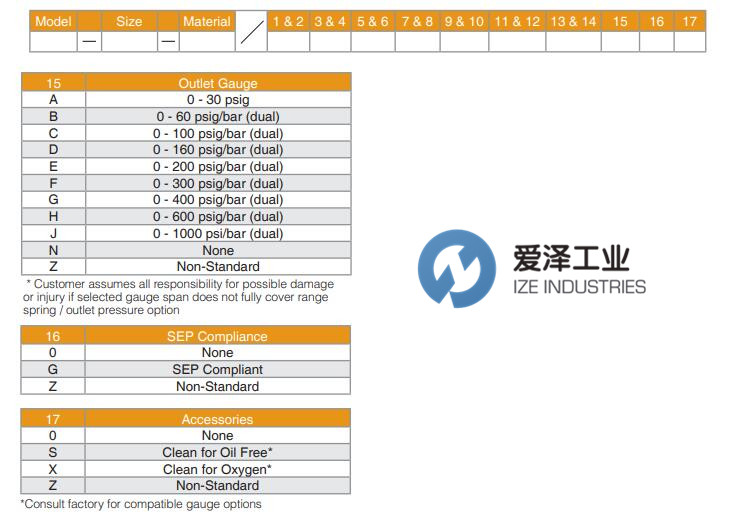

LOWFLOW閥門執行器JRH系列選型表
LOWFLOW閥門執行器JRH系列其他常見型號：
LOWFLOW JRH-038-6L
LOWFLOW JRH-050-6L
