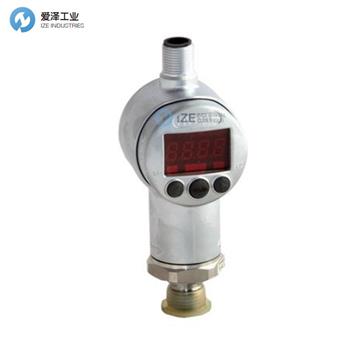

HYDAC壓力傳感器EDS3348-5-0016-000-F1規格描述
EDS 3 3 |
4 = G1/4 A ISO 1179-2 |
8= male M12x1, 5 poleonly possible on output model "5" and modification "000" |
5= 2 switching outputs and 1 analogue outputonly in conjunction with electrical connection type "8'and modification "000" |
0016=Measuring ranges in ba |
000 = standard |
F = FKM seal (e.g. for hydraulic oils) |
1 = stainless steel |
HYDAC壓力傳感器EDS3300系列描述及選型
The EDS 3300 is a compact electronic pressure switch with integrated digital display for relative pressure measurement in the low pressure range.
It has a ceramic measurement cell with thick-layer strain gauge. Depending on the particular version, the instrument can have one or two switching outputs, and there is the option of an additional switchable analogue output signal (4 .. 20 mA or 0 .. 10 V).
A special design feature of the EDS 3300 is that the display can be moved in two planes. The device can be installed in almost any mounting position and the display can be turned to the optimum position without the usual additional expense of a mechanical adapter.
The 4-digit display can indicate the pressure in bar, psi or MPa. The user can select the particular measurement unit. When changing to a different measurement unit, the device automatically converts all the switching settings to the new unit of measurement.
The EDS 3300 is also available in a variant with menu navigation in accordance with VDMA.
The main applications of the EDS 3300 are primarily in low-pressure ranges in hydraulics and pneumatics, as well as in refrigeration and air conditioning technology.
EDS 3300是一款緊湊型電子壓力開關，帶有集成數字顯示屏，用于在低壓范圍內進行相對壓力測量。
它有一個帶有厚層應變儀的陶瓷測量單元。根據特定版本，儀器可以有一個或兩個開關輸出，并且可以選擇附加的可切換模擬輸出信號（4 .. 20 mA 或 0 .. 10 V）。
EDS 3300的一個特殊設計特點是顯示器可以在兩個平面上移動。該設備幾乎可以安裝在任何安裝位置，并且顯示器可以轉動到最佳位置，而無需額外的機械適配器費用。
4位顯示屏可以以bar、psi或MPa為單位顯示壓力。用戶可以選擇特定的測量單位。更改為不同的測量單位時，設備會自動將所有切換設置轉換為新的測量單位。
EDS 3300還提供符合VDMA的帶有菜單導航的變體。
EDS 3300的主要應用主要是在液壓和氣動以及制冷和空調技術的低壓范圍內。
HYDAC壓力傳感器EDS3300系列其他常用型號：
HYDAC 925797 EDS 3346-1-0001-000-F1 (-1...+1bar)
HYDAC 927146 EDS 3346-1-0001-V00-E1(-1...1bar)
HYDAC 909758 EDS 3346-1-0005-000-F1 (-1...+5bar)
HYDAC 909112 EDS 3346-1-0010-000-E1
HYDAC 908589 EDS 3346-1-0010-000-F1
HYDAC 908744 EDS 3346-1-0016-000-E1
HYDAC 908363 EDS 3346-1-0016-000-F1
HYDAC 921693 EDS 3346-1-0025-000-E1
HYDAC 909993 EDS 3346-1-0025-000-F1
HYDAC 909055 EDS 3346-1-0040-000-F1
HYDAC 909668 EDS 3346-1-01,0-000-E1
HYDAC 908612 EDS 3346-1-01,0-000-F1
HYDAC 921568 EDS 3346-1-02,5-000-E1
HYDAC 909016 EDS 3346-1-02,5-000-F1
HYDAC 908460 EDS 3346-1-06,0-000-E1
HYDAC 908177 EDS 3346-1-06,0-000-F1
HYDAC 921623 EDS 3346-2-0001-000-E1 (-1...+1bar)
HYDAC 908717 EDS 3346-2-0001-000-F1 (-1...+1bar)
HYDAC 923150 EDS 3346-2-0001-V00-F1(-1..1bar)
HYDAC 908715 EDS 3346-2-0005-000-F1 (-1...+5bar)
HYDAC 909411 EDS 3346-2-0009-000-F1 (-1...+9bar)
HYDAC 909147 EDS 3346-2-0010-000-E1
HYDAC 908560 EDS 3346-2-0010-000-F1
HYDAC 909112 EDS 3346-1-0010-000-E1
HYDAC 908589 EDS 3346-1-0010-000-F1
HYDAC 908744 EDS 3346-1-0016-000-E1
HYDAC 908363 EDS 3346-1-0016-000-F1
HYDAC 921693 EDS 3346-1-0025-000-E1
HYDAC 909993 EDS 3346-1-0025-000-F1
HYDAC Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC壓力傳感器EDS3348-5-0016-000-F1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
