ABB定位器V18345-2020521301

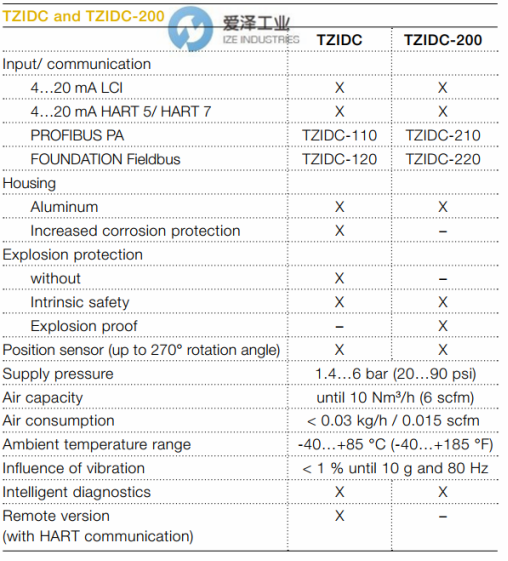

TZIDC | TZIDC-200 | |
Input/ communication | ||
4…20 mA LCI | X | X |
4…20 mA HART 5/ HART 7 | X | X |
PROFIBUS PA | TZIDC-110 | TZIDC-210 |
FOUNDATION Fieldbus | TZIDC-120 | TZIDC-220 |
Housing | ||
Aluminium | X | X |
Increased corrosion protection | X | – |
Explosion protection | ||
without | X | – |
Intrinsic safety | X | X |
Explosion proof | – | X |
Position sensor (up to 270° rotation angle) | X | X |
Supply pressure | 1.4…6 bar (20…90 psi) | |
Air capacity | until 10 Nm3/h (6 scfm) | |
Air consumption | < 0.03 kg/h/ 0.015 scfm | |
Ambient temperature range | ﹣40…+85 °C (-40…+185 °F) | |
Influence of vibration | < 1 % until 10 g and 80 Hz | |
Intelligent diagnostics | X | X |
Remote version(with HART communication) | X | – |

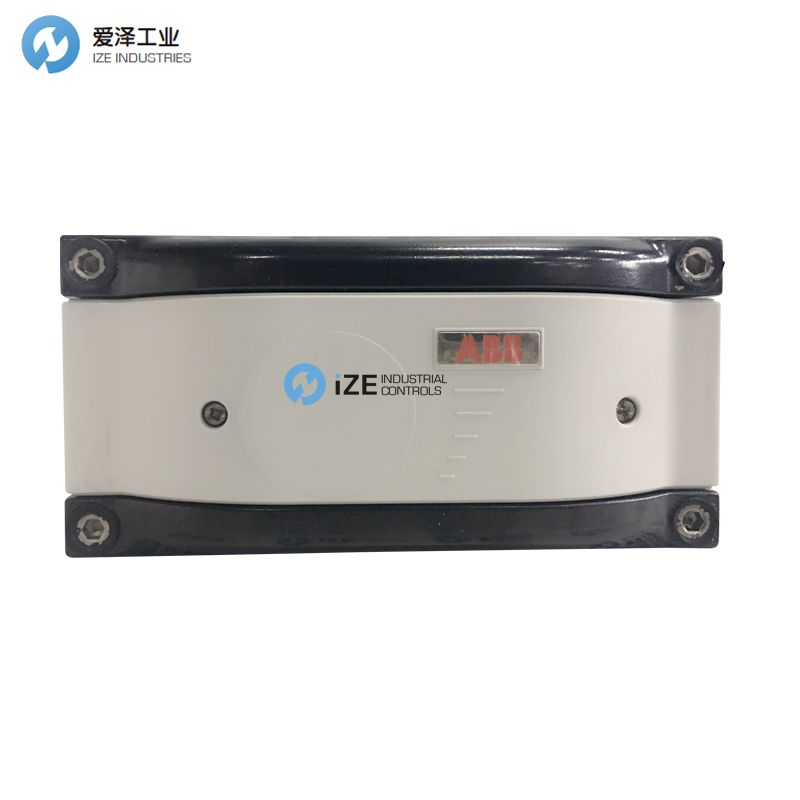

ABB定位器TZIDC描述
TZIDC是ABB定位器中通過HART進行通信的數字智能定位器。具有卓越的抗沖擊及振動性能從10g up to 80Hz,可以在絕大多數惡劣的環境條件下都能可靠運行。
規格：
數字HART通信;
由于本地操作和自動調整，現場調試和操作非常簡單;
全球本安認證;
線性和旋轉執行器設計堅固，使用靈活;
遠程傳感器版本
- 先進的抗振動2 g，300 Hz
- 防護等級IP 67
特點
-簡單的調試和直觀的操作
-運行期間自動調整控制參數
-高抗沖擊和抗振動性
-可選擇閥門的安全位置
-低空氣消耗
-監控過程參數
-提供不同的通信協議
-應用安全保護（本質安全或防爆）
-適用于幾乎所有過程控制執行器和閥門
-適用于寬溫度范圍
Benefits:
? Simple commissioning and intuitive handling
? Automatic adjustment of control parameters during operation
? High shock and vibration immunity
? Selectable safety position of the valve
? Low air consumption
? Monitoring of process parameters
? Different communication protocols available
? Application safety protection (intrinsic safety or explosion proof)
? Suitable for nearly all process control actuators and valves
? Applicable in a wide temperature range
易于裝置和系統集成
- 適用于幾乎所有氣動執行器和閥門：所有執行器尺寸，所有類型的氣動執行器
- 不同的連接可能性：M20 x 1.5 / 1/4 NPT，1/2 NPT / 1/4 NPT，M20 x 1.5 / G1 / 4
- 提供各種通信協議：HART 5，HART 7，PROFIBUS PA，基金會現場總線以及本地接口
- 即使在離開信號范圍時也能提供強大的操作性能：剪切功能
Easy plant and system integration
?Suitable for nearly all pneumatic actuators and valves: all actuator sizes, all types of pneumatic actuators
?Different connection possibilities: M20 x 1.5/1/4 NPT, 1/2 NPT / 1/4 NPT, M20 x 1.5/G1/4
?Various communication protocols available: HART 5, HART 7, PROFIBUS PA, FOUNDATION Fieldbus as well as local interface
?Robust operating behavior even when leaving the signal range: Clipping function
精確定位
- 操作期間控制參數的自動優化：控制自適應功能
- 高抗沖擊和抗振動性：堅固的設計可提供高達10 g和80 Hz的高抗振性
- 精確定位，不考慮安裝方式：螺栓到杠桿/螺栓到閥桿的功能
- 即使安裝后需要進行新的自動調諧，也能保持現有的死區：死區功能
Precise positioning
The intelligent construction as well as various special functions make the TZIDC highly precise.
?Automatic optimization of control parameters during operation: Control adaptive function
?High shock and vibration immunity: robust design provides high vibration resistance of up to 10 g and 80 Hz
?Precise positioning with no regard for the mounting arrangement: Bolt-to-lever/ Bolt-to-stem function
?Keeping the existing deadband even when a new auto-tune is required after mounting: Dead-band function

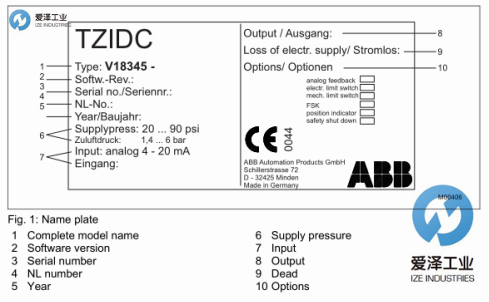

ABB定位器TZIDC銘牌解析
ABB定位器TZIDC/TZIDC-200銘牌解析
愛澤工業(IZE_INDUSTRIES)特價經銷、常用ABB定位器型號：
ABB定位器V18345-5010451001
ABB定位器V18345-1010160001
ABB定位器V18345-1010221001
ABB定位器V18345-1010251001
ABB定位器V18345-1010420001
ABB定位器V18345-1010521001
ABB定位器V18345-1010550001
ABB定位器V18345-1020520001
ABB定位器V18345-1021120001
ABB定位器V18345-1021420001
ABB定位器V18345-1010121001
ABB定位器V18345-1010120001
ABB定位器V18345-1020121001
ABB定位器V18345-1004210001
ABB定位器V18345-1011220001
ABB定位器V18345-1010561001
ABB定位器V18345-1011121001
ABB定位器V18345-2010421001
ABB定位器V18345-2010521001
ABB定位器V18345-2010521501
ABB定位器V18345-2011150001
ABB定位器V18345-2020521301
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB定位器V18345-2020521301疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
有關ABB定位器V18345-2020521301更詳細的信息或者瑞士ABB相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
ABB定位器TZIDC系列技術數據產品描述及特點
