FRAMOMORAT執行器MINI01系列 示例MINI 01-DA-4475
Standard | Options |
100 mm stroke length | AC motors |
Mounting version A | Motors with special voltage upon request |
Thermal protection | 4 mounting versions |
Splash-proof IP54 | Special stroke length up to 11.8 inch |
Integrated limit switches | With force-dependent shut off |
Maintenance-free | With adjustment ring |
Lifetime lubrication | With adjustable rod end |
3-phase motor | With potentiometer |
Drive completely in stainless steel | With encoder |
With single disk spring-activated brake |
FRAMOMORAT執行器MINI01系列產品簡介
Framo Morat的直線執行器是機電驅動器，可將集成電動機的旋轉運動轉換為線性向前或向后運動。
Framo Morat執行器主要設計用于工業用途。它們特別堅固，并配備了許多安全標準。所有安裝位置都是允許的。
特殊技術特征是：
完整的不銹鋼外殼（適用于Mini 0,01和1型），可保護所有機械和電氣部件（包括端子板）。 只需連接電纜和可移動活塞桿即可縮回。
Linear actuators from Framo Morat are electromechanical drives which convert the rotating motion of the integrated electric motor into a linear forward or backward motion.
Framo Morat actuators are primarily designed for industrial use. They are particularly robust and equipped with many safety standards. All installation positions are permissible.
Special technical features are:
Complete stainless steel housing (for type Mini 0, 01 and 1) which protects all mechanical and electrical parts (including terminal board). Only the connecting cables and the movable piston rod needs to be retracted.

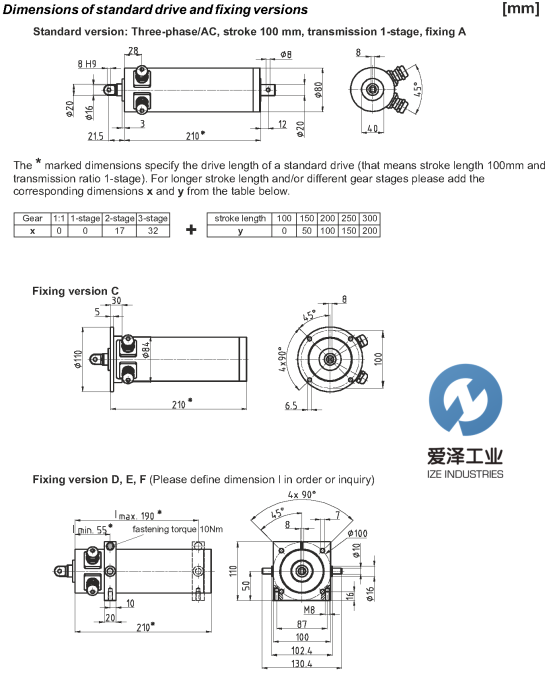

FRAMOMORAT執行器MINI01系列尺寸圖
FRAMOMORAT執行器MINI01系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件FRAMOMORAT執行器部分型號：
FRAMOMORAT執行器Mini0
FRAMOMORAT執行器Mini01
FRAMOMORAT執行器Mini1
FRAMOMORAT執行器Mini2
FRAMOMORAT執行器Mini3
FRAMOMORAT執行器MINI01-D/A-4475
FRAMOMORAT執行器Mini01 D/C 1000-15-85
FRAMOMORAT執行器Mini01-D/A-1500-2-100-O/O+P
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FRAMOMORAT執行器MINI01系列 示例MINI 01-DA-4475的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關FRAMOMORAT執行器MINI01系列 示例MINI 01-DA-4475更詳細的信息或者購買FRAMOMORAT相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
FRAMOMORAT執行器MINI01系列產品簡介及尺寸圖
