FRAMOMORAT線性執行器82-0000000201技術參數
Type: | 3 |
Motor type: | 801 |
Voltage (V): | 3x400 AC |
Frequency (Hz): | 50 |
Speed (min-1): | 1400 |
Power (kW): | 1,5 |
ED (%): | 15 |
Thermal motor protection: | Bimetal |
Protection class (IP): | 54 |
Current (A): | 2.9 |
Stroke (mm): | 175 |
Ratio: | 16:1 |
Lifting speed (mm/s): | 12 |
Adjustment force (N): | 20000 |
Identification plate additive head: | D/O |
Mounting execution: | C |
Lubricant: | Klübersynth G34-130 |
Option 1: | Without head |
Option2: | Break 24V (DC) |

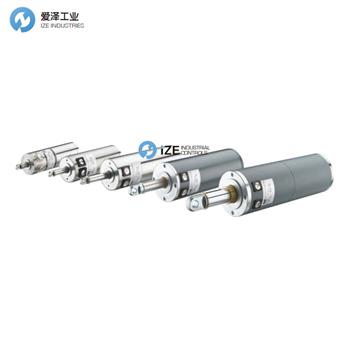

FRAMOMORAT線性執行器Mini系列介紹
Mini 系列線性執行器的特點是形狀特別緊湊，適合其性能等級的執行器。正是由于這個原因，它們可以在可用空間有限的任何地方使用。憑借多種商用選項，迷你驅動器涵蓋了廣泛的應用領域。盡管其設計緊湊、輕便，但它非常耐用且持久。
? 5 種尺寸，提升力高達 5848 磅
? 高效率帶來低運營成本
? 集成熱保護
? 終身潤滑
? 小設計尺寸，高性能
? 標準IP 54防護等級
The Mini series linear actuators are characterized by their especially compact shape for actuators in their performance class. It is for this reason that they can be used anywhere where there is a limited amount of space available. The Mini drives cover a wide range of application areas thanks to a variety of commercially available options. Despite its compact and lightweight design, it is extremely durable and long-lasting.
? 5 sizes with lifting forces of up to 5848 lbs
? Low operating costs as a result of high efficiency
? Integrated thermal protection
? Lifetime lubrication
? High performance capacity in a small design size
? Standard IP 54 protection class
FRAMOMORAT線性執行器Mini系列其他常用型號：
FRAMOMORAT Mini 3-D/A-26000-1.1-175-O/D
FRAMOMORAT Mini 3-D/C-26000-1.1-175-A/P
FRAMOMORAT Mini 3-D/C-26000-1.1-175-V
FRAMOMORAT Mini 3-D/D-26000-1.1-175-V/P
FRAMOMORAT Mini 3-D/D-26000-1.1-175-V/B
FRAMOMORAT Mini 3-D/A-26000-1.1-175-O/P
FRAMOMORAT Mini 3-D/D-26000-1.1-175-O
FRAMOMORAT Mini 3-D/E-26000-1.1-175-A/D
FRAMOMORAT Mini 3-D/E-26000-1.1-175-A/B
FRAMOMORAT Mini 3-D/A-26000-1.1-175-O
FRAMOMORAT Mini 3-D/C-26000-1.1-175-O/B
FRAMOMORAT Mini 3-D/C-26000-1.1-175-V/P
FRAMOMORAT Mini 3-D/A-26000-1.1-175-A
FRAMOMORAT Mini 3-D/A-26000-1.1-175-V
FRAMOMORAT Mini 3-D/E-26000-1.1-175-O/B
FRAMOMORAT Mini 3-D/C-26000-1.1-175-O/D
FRAMOMORAT Mini 3-D/E-26000-1.1-175-V
FRAMOMORAT Mini 3-D/A-26000-1.1-175-V/D
FRAMOMORAT Mini 3-D/C-26000-1.1-175-V/D
FRAMOMORAT Mini 3-D/C-26000-1.1-175-V/B
FRAMOMORAT Mini 3-D/D-26000-1.1-175-A
FRAMOMORAT Mini 3-D/D-26000-1.1-175-A/D
FRAMOMORAT Mini 3-D/D-26000-1.1-175-A/P
FRAMOMORAT Mini 3-D/F-26000-1.1-175-A/P
FRAMOMORAT 82-0000000201
