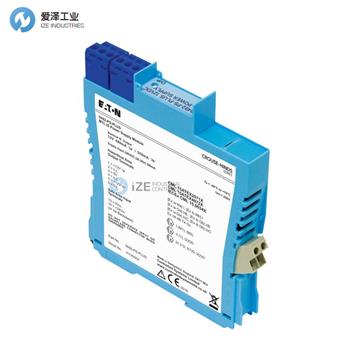

MTL模塊9492-PS-PLUS技術參數
IS 電源，Ex ia/ib IIB，Uo 12.8V
IS power supply Ex ia/ib IIB, Uo 12.8V
MTL模塊949x-PS系列介紹
本質安全電源（Intrinsically Safe Power Supplies）
MTL的949x-PS系列本質安全（IS）隔離電源，專為在危險工藝區域為儀表設備提供電力而設計。它們提供多種輸出電壓，范圍從4.8V至17.7V，具有靈活的選項，以最佳適應各種應用需求。9492-PS-PLUS是為MTL的947x-ET/G和946x-ET系列以太網設備提供直接電源或IS Power over Ethernet（PoEx?）的首選方式，該方法允許單根電纜同時傳輸數據和電力，從而降低安裝成本。
輸出電壓范圍廣：4.8V - 17.7V
工作溫度范圍寬：-40°C 至 +70°C（9492-PS-PLUS及9493-PS-xxx）
適用于Zone 2區域安裝
支持DIN軌或背板安裝
通過ATEX / IECEx認證
此外，9491-PS已獲得FM和FMC批準，可在Class 1 Division 2危險區域內安裝，Ex ia輸出認證支持連接至Class 1 Division 1組C、D的危險區域。9493-PS-xxx提供適用于氣體組別IIB和IIC危險區域的連接版本。
Intrinsically Safe Power Supplies
The 949x-PS range of MTL intrinsically safe (IS) isolated power supplies are ideal for providing power to instrumentation in hazardous process areas. They offer a wide range of different IS output voltages, ranging from 4.8V - 17.7V, offering flexibility of options to best suit a variety of applications. The 9492-PS-PLUS is the preferred method for supplying 947x-ET/G and 946x-ET ranges of MTL IS Ethernet devices to provide direct power or IS Power over Ethernet (PoExTM), a method which allows a single cable to provide both the data connection and electrical power to devices, in turn, reducing installation costs.
Wide range of output voltages 4.8V - 17.7V
Wide operating temperature range of -40 ?C to +70 ?C for 9492-PS-PLUS and 9493-PS-xxx
Zone 2 mountable
DIN-rail or backplane mounting
ATEX / IECEx certified
Additionally, the 9491-PS is FM and FMC approved for installation in Class 1 Division 2 hazardous locations with the Ex ia output certified for connection into Class 1 Division 1 Groups C, D hazardous locations. The 9493-PS-xxx provides versions for connections into both Gas Group IIB and Gas Group IIC hazardous areas.
MTL模塊其他常用型號：
MTL 9491-PS
MTL 9491-PS-PLUS
MTL 9492-PS-PLUS
MTL 9493-PS-XXX
MTL Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MTL模塊9492-PS-PLUS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MTL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
