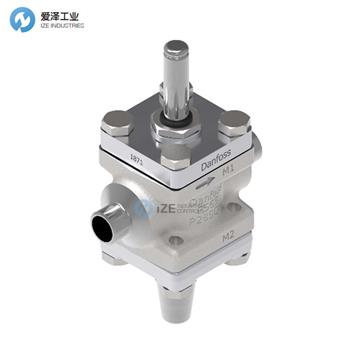

DANFOSS閥組ICF 20-2-121 027L3802技術參數
Product details | |
Gross weight | 3.031 Kilogram |
Net weight | 2.56 Kilogram |
Volume | 17.6 Liter |
EAN | 5702424545123 |
Approval | EAC |
Body material | Steel |
China RoHS compliance | Out of scope |
Connection material | steel |
Connection size [in] | 1/2 in |
Connection size [mm] | 15 mm |
Connection standard | EN 10220 |
Connection type | Butt weld |
Contain batteries | No |
Direction | Straightway |
EU RoHS compliance | Out of scope |
Flow direction indicator | Embossed 1-way arrow |
Fluid Group | 1 |
Max. Working Pressure [bar] | 65 bar |
Max. Working Pressure [psig] | 943 psig |
Module 1 | Solenoid valve |
Module 1 type | ICFE 20 |
Module 2 | Manual opening |
Module 2 type | ICFO 20 |
Packing format | Single pack |
PED category | Art. 4, par. 3 |
Product accessories | ICF accessories |
Product description | Control Solution |
Product group | Multifunction valves |
Product Name Description | Valve station |
Quantity per packing format | 1 pc |
Refrigerants | R1234yf, R1234ze(E), R125, R134a, R152a, R22, R227ea, R236fa, R245fa, R32, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744 |
Serviceable | ICF spare parts |
Surface coating | Zn (TLP) |
Temperature range [°C] [max] | 120 °C |
Temperature range [°C] [min] | -60 °C |
Temperature range [°F] [max] | 248 °F |
Temperature range [°F] [min] | -76 °F |
Type | ICF 20-2-121 |
Type code ICF | ICF-20-2-15DEXOXXXXXXXXX0LAX |
UK RoHS compliance | Out of scope |
UL evaluated | Yes |
DANFOSS閥組ICF 20-2-121 027L3802產品介紹
閥組，ICF 20-2-121，15 mm，連接標準：EN 10220
連接尺寸 [mm]：15，
連接類型：對接焊縫，
閥體材質：鋼，
表面涂層：Zn (TLP)，
最大工作壓力 [bar]：65.0，
溫度范圍 [°C]：-60 - 120
Valve station, ICF 20-2-121, 15 mm, Connection standard: EN 10220
Connection size [mm]: 15,
Connection type: Butt weld,
Body material: Steel,
Surface coating: Zn (TLP),
Max. Working Pressure [bar]: 65.0,
Temperature range [°C]: -60 - 120
DANFOSS閥組ICF系列其他常用型號：
DANFOSS ICF 20-2-121 027L3803
DANFOSS ICF 20-2-121 027L3802
DANFOSS ICF 20-2-121 027L3811
DANFOSS ICF 20-2-121 027L3832
DANFOSS ICF 20-2-121 027L3809
DANFOSS ICF 20-2-121 027L3813
DANFOSS ICF 20-2-121 027L3801
DANFOSS ICF 20-2-121 027L3818
DANFOSS ICF 20-2-121 027L3805
DANFOSS ICF 20-2-121 027L3817
