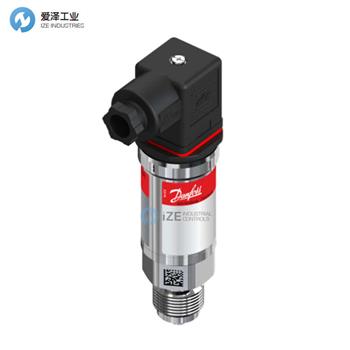

DANFOSS壓力變送器060G4306技術參數
Product details | |
+supply | Pin 1 |
-common | Pin 2 |
Accuracy, max. [±FS%] | 0.01 |
Accuracy, typical [±FS%] | 0.005 |
Adj. zero point and span | No |
Approval | ATEX |
CE evaluated | Yes |
China RoHS compliance | Yes |
Compensated temp. range [°C] [max] | 100 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 212 °F |
Compensated temp. range [°F] [min] | 32 °F |
EEE category | 5 small equipment (any external dimension 50 cm) |
Electrical conn. Male/Female | Male and Female |
Electrical connection | Angular connector |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
EU RoHS compliance | Yes |
EU RoHS exemption clause | No |
EX Sales text | Ex iA IIC T5..T4 Ga/Gb |
Flush diaphragm | No |
High Clipping Level | 22.4 |
Identical product | 060G4306 |
In scope of WEEE | Yes |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423157778 |
Intrinsically safe | Yes |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 125 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 257 °F |
Medium temperature range [°F] [min] | -40 °F |
Non-linearity BFSL [±FS%] | 0.002 |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 36 bar |
Overload pressure max. [psi] | 522 psi |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/2 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 6 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 87 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
SCIP dossier product name | AKS/MBS |
Specification key | MBS 4201-1811-A1AB08-0 |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [min] | 10 V |
Supply voltage [V] DC [min] | 10 V |
Type | MBS 4201 |
UK RoHS compliance | Yes |
DANFOSS壓力變送器MBS 4201系列其他常用型號：
DANFOSS 060G4281
DANFOSS 060G4300
DANFOSS 060G4301
DANFOSS 060G4302
DANFOSS 060G4304
DANFOSS 060G4306
DANFOSS 060G4307
DANFOSS 060G4308
DANFOSS 060G4309
DANFOSS 060G4310
DANFOSS 060G4311
DANFOSS 060G4312
