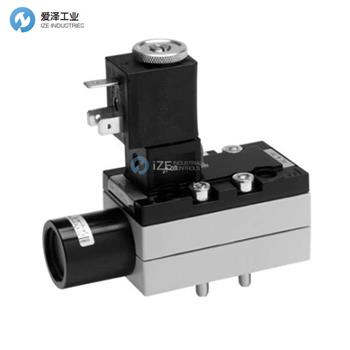

AVENTICS換向閥5811110100技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 1400 l/min |
Switching principle | 5/2, with spring return |
Compressed air connection output | Base plate ISO 5599-1 |
Min. working pressure | 3 bar |
Max. working pressure | 10 bar |
Operational voltage DC | 24 V |
Voltage tolerance DC | -10% / +10% |
Manual override | with detent |
Electrical connection type | Plug |
Electrical connection size | Form B, industry |
Actuating control | Single Solenoid |
Sealing principle | Soft seal |
Pilot | Internal |
Standards | ISO 5599-1 |
Pilot valve width | 22 mm |
Valve type | Spool valve |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Return | With spring return |
Compressed air connection input | Base plate ISO 5599-1 |
Compressed air connection, exhaust | Base plate ISO 5599-1 |
Compressed air connection pilot exhaust | M5 |
Power consumption DC | 5 W |
Flow conductance C | 5.2 l/(s*bar) |
AVENTICS換向閥5811110100產品介紹
特點
? 標準化閥門系統
? 提供 ISO 1 至 4 尺寸
? 設計堅固
? 集成排氣節流閥
? 多種電壓范圍
? 壓力范圍可達 16 bar
? CNOMO 接口
? 尺寸小巧
? 換檔時間快快速換檔時間
Features
? Standardized valve system
? ISO size 1 to 4 available
? Robust design
? Integrated exhaust throttles
? Numerous voltage ranges
? Pressure range up to 16 bar possible
? CNOMO interface
? Small dimensions
? Fast shifting times
AVENTICS換向閥581系列其他常用型號：
AVENTICS 5811110500
AVENTICS 5811110200
AVENTICS 5811110100
AVENTICS 5811110600
AVENTICS 5811110300
AVENTICS 5811110400
AVENTICS 5811110000
AVENTICS 5811111500
AVENTICS 5811111200
AVENTICS 5811111100
AVENTICS 5811111600
AVENTICS 5811111300
AVENTICS 5811111400
AVENTICS 5811111000
AVENTICS 5811112500
AVENTICS 5811112200
