AMC伺服驅動器120A10技術參數
SPECIFICATIONS | |
Current Continuous (A) | 60 |
Current Peak (A) | 120 |
DC Supply Voltage (VDC) | 20 - 80 |
Network Communication | None |
Size (mm) | 254 x 130.2 x 48.7 |
Weight (g) | 1140 |
AMC伺服驅動器120A10產品介紹

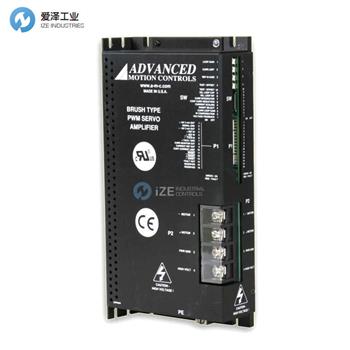

120A10 PWM伺服驅動器設計用于以高開關頻率驅動有刷直流電機。單個紅/綠 LED 指示操作狀態。該驅動器具有全面的保護，防止過壓、欠壓、過流、過熱以及電機、接地和電源線之間的短路。此外，該驅動器可以與數字控制器連接或獨立使用，并且僅需要一個未穩壓的直流電源。環路增益、電流限制、輸入增益和偏移可以使用 14 圈電位器進行調整。 失調調節電位器還可用作板載輸入信號以進行測試。
The 120A10 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14- turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
AMC伺服驅動器120A系列其他常用型號：
AMC 120A10
AMC 120A10B-24
AMC 120A10B-24NH
AMC 120A10B-NH
AMC 120A5
AMC Servo Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMC伺服驅動器120A10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AMC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
