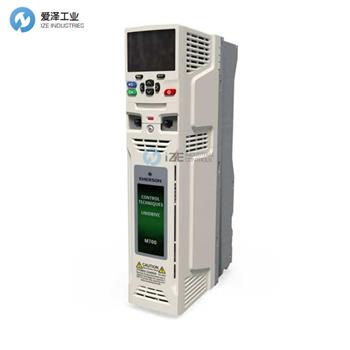

CONTROL TECHNIQUES伺服驅動器M702-03400100A技術參數
M702 = Safety enhanced |
03=3 to 12 |
4 = 400V (380V-480V +/-10%) |
0010=Heavy Duty Rating x 10 |
A = AC in AC out (with internal line choke) |
CONTROL TECHNIQUES伺服驅動器M700系列介紹
適用于扭矩控制應用
精確扭矩控制，更新率高達 250 μs
感應、永磁和混合永磁電機的無傳感器控制
效率高達 98%，電力轉換過程中能量損失小
簡單的公共直流母線配置、動態制動和再生模式
全系列獨立式、模塊化和預裝驅動器，功率高達 2.8MW（4,200hp）
板載 PLC 用于執行邏輯和排序程序
對于速度控制應用
完全可配置的 S 斜坡
支持高達 16 kHz 的高帶寬速度環路和開關頻率
內置通用反饋接口，支持從旋轉變壓器到增量式和絕對式編碼器的所有內容
靜止自動調諧
可調節多速風扇和智能熱管理，噪音低
集成安全扭矩關閉 (STO) 輸入，已通過 SIL3 / PLe 認證
對于位置控制應用
支持控制總線技術，包括傳統現場總線和串行通信
通過 PLC 控制運動輕松集成到 PLC 架構中
內置 1.5 軸高級運動控制器，具有凸輪輪廓、歸位和電子變速箱
可擴展的集成運動控制減少了對中央 PLC 的需求，或者可以完全取代中央 PLC
全面的運動安全功能，包括通過安全網絡
For Torque Control applications
Precision torque control with up to 250 μs update rate
Sensorless control of induction, permanent-magnet and hybrid PM motors
98% efficient, minimal energy lost during the power conversion process
Easy common DC bus configuration, dynamic braking, and regenerative mode
Full spectrum of stand-alone, modular and pre-assembled drives up to 2.8MW (4,200hp)
On-board PLC to execute programs for logic and sequencing
For Speed Control applications
Fully configurable S-ramps
High bandwidth speed loop and switching frequencies supported up to 16 kHz
Built-in, universal feedback interface supporting everything from resolvers to incremental and absolute encoders
Stationary autotune
Low acoustic noise due to adjustable multi-speed fan and intelligent thermal management
Integrated Safe Torque Off (STO) input(s), certified to SIL3 / PLe
For Position Control applications
Support for virtually all control bus technologies, including traditional fieldbuses and serial communications
Effortless integration into PLC architectures with PLC Controlled Motion
Built-in, 1.5 axis advanced motion controller with cam profiles, homing, and electronic gearbox
Scalable integrated motion control reduces demand on, or can entirely replace, a central PLC
Comprehensive motion safety functions, including over safe networks
CONTROL TECHNIQUES伺服驅動器M700系列其他常用型號：
CONTROL TECHNIQUES M702-034-00078A
CONTROL TECHNIQUES M702-03400062A
CONTROL TECHNIQUES M702-03400100A
CONTROL TECHNIQUES M702-064-00350A
CONTROL TECHNIQUES M702-064-00420A
CONTROL TECHNIQUES M702-064-00470A
CONTROL TECHNIQUES M702-074-00660A
CONTROL TECHNIQUES M702-074-00770A
CONTROL TECHNIQUES M702-074-01000A
CONTROL TECHNIQUES M702-084-01340A
CONTROL TECHNIQUES Servo Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTROL TECHNIQUES伺服驅動器M702-03400100A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
CONTROL TECHNIQUES伺服驅動器M700系列M702-03400100A技術參數及選型
