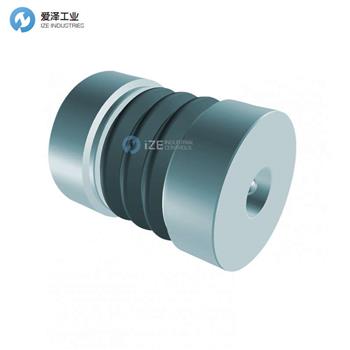

BAUMANN聯軸器CHP34技術參數
SPECIFICATIONS | |
TYPE CHP | |
Size | 34 |
Nominal torque MN Nm | 1.5 |
Max. speed nmax min–1 | 5500 |
Torsional stiffness C Nm/° | 0.57 |
Angular misalignment ?WW ° | 10 |
Radial misalignment ?Wr mm | 0.5 |
Axial misalignment ?Wa mm | ±0.5 |
Inertia (dmax) J kgm2·10–6 | 7.9 |
Weight(dmax) m g | 51 |
BAUMANN聯軸器CHP系列介紹
軸上的扭轉剛性、無間隙附件
準確傳遞旋轉運動; 同時由于安裝不準確、熱膨脹等引起的軸不對中在規定范圍內得到補償
如果轉數超過 2000 min–1,則允許偏差范圍減少到 50%
Torsionally stiff, play-free attachments to shaft
Accurate transmission of the rotary motion; at the same time the shaft misalignment caused by inaccuracy of installation, thermal expansion, etc. is compensated within the specified range
Range of permitted deviation reduced to 50% if number of revolutions is more than 2000 min–1
BAUMANN聯軸器CHP系列其他常用型號:
BAUMANN CHP20
BAUMANN CHP26
BAUMANN CHP34
BAUMANN COUPLINGS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUMANN聯軸器CHP34的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for BAUMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
