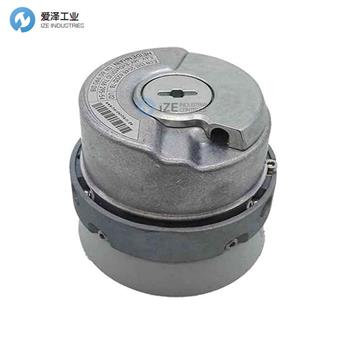

REXROTH編碼器ECN1313系列技術參數
Interface | EnDat 2.2 |
Ordering designation | EnDat01 |
Position values/revolution | 8192 (13 bits) |
Elec. permissible speed/ Deviations1) | 512 lines: |
Calculation time tcal | ≤ 9 μs |
Line count | 512 2048 |
Cutoff frequency –3 dB | 2048 lines: ? 400 kHz 512 lines: ? 130 kHz |
System accuracy | 512 lines: ±60“; 2048 lines: ±20“ |
Electrical connection via PCB connector | 12-pin |
Voltage supply | DC 3.6 V to 14 V |
Power consumption (max.) | 3.6 V: ? 0.6 W |
Current consumption (typical) | 5 V: 85 mA (without load) |
Shaft | Taper shaft ? 9.25 mm; taper 1:10 |
Mech. permiss. speed n | ≤ 15 000 rpm |
Starting torque | ≤ 0.01 Nm (at 20 °C) |
Moment of inertia of rotor | 2.6 x 10–6 kgm2 |
Natural frequency of the stator coupling | ≥ 1800 Hz |
Permissible axial motion of measured shaft | ±0.5 mm |
Vibration 55 Hz to 2000 Hz Shock 6 ms | ≤ 300 m/s2 4) (EN 60 068-2-6) |
Max. operating temp. | 115 °C |
Min. operating temp. | –40 °C |
Protection EN 60 529 | IP40 when mounted |
Mass | ? 0.25 kg |
Valid for ID | 768295-xx |
REXROTH編碼器ECN1300系列介紹
絕對值旋轉編碼器
? 07B 定子聯軸器，帶防轉元件，用于軸向安裝
? 65B錐軸
? 提供功能安全的編碼器
? 可根據 EN 61 800-5-2 對轉子和定子聯軸器進行故障排除
Absolute rotary encoders
? 07B stator coupling with anti-rotation element for axial mounting
? 65B taper shaft
? Encoders available with functional safety
? Fault exclusion for rotor and stator coupling as per EN 61 800-5-2 possible
REXROTH編碼器ECN系列其他常用型號：
REXROTH ECN1313-A-S-2048-E-1VSS-12V-H12,7
REXROTH ECN1325
REXROTH ECN1387
REXROTH ENCODER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH編碼器ECN1313-A-S-2048-E-1VSS-12V-H12,7的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH編碼器ECN1300系列ECN1313-A-S-2048-E-1VSS-12V-H12,7技術參數及介紹
