CONTROL TECHNIQUES伺服電機XVM-8022-TONS-0000技術參數
Code | XVM-8022-TONS-0000 |
Motor | XVM |
Frame Order Code | 8022 = Stall Torque: 22.6 in ( 2.55 mm) |
Connections | T = AMP connector on flying leads |
Brake | O = Unbraked |
Feedback Device | N = Incremental encoder 2048 ppr |
Inertia | S = Std. |
Specials | 0000 = Low voltage windings |

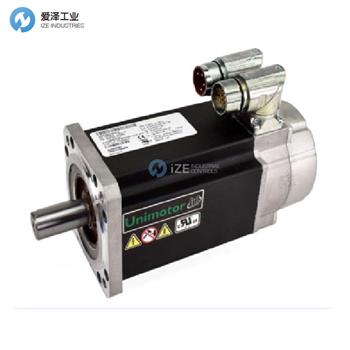

CONTROL TECHNIQUES伺服電機XV系列介紹
XV 電機是一款高性能、低慣性和高扭矩的無刷交流伺服電機，采用緊湊的經濟型封裝，是大批量應用不錯的選擇。
XV 電機通過 UL 認證、CE 批準并符合 RoHS 標準，可提供低成本解決方案，同時具備高價伺服產品的特點。
XV 電機適用于更高的吞吐量和更小的機器，有 4 種框架尺寸可供選擇：40、60、80 和 130 毫米，速度范圍為 2000 至 5000 rpm。連續扭矩要求高達 101 lb-in (11.4 Nm) 的應用是 XV 電機的完美搭配。
40、60 和 80 毫米的 XV 電機配有 AMP (Tyco? Mate-n-Lock?) 連接器，帶有 1 英尺的飛線。 （為了增加應力消除，這些連接器可以通過面板或支架上的孔卡入到位。）
特點
? 扭矩范圍：0.95 至 101 lb-in（0.1 至 11.4 Nm）
? 轉速等級高達 5000 rpm
? 四種框架尺寸：40、60、80 和 130 mm
? UL 認證、CE 批準和 RoHS
? 環境工作溫度：32 至 122 ?F（0 至 40 ?C）
The XV Motor is a high performance, low-inertia and high-torque brushless AC servo motor in a compact economical package – ideal for high-volume applications.
UL recognized, CE approved and RoHS compliant, XV Motors offer low-cost solutions with the features of a premium-priced servo offering.
Intended for higher throughputs and smaller machines, XV Motors are available in 4 frame sizes: 40, 60, 80 and 130 mm with speeds ranging from 2000 to 5000 rpm. Applications with continuous torque requirements up to 101 lb-in (11.4 Nm) are the perfect match for XV Motors.
XV Motors with 40, 60 and 80 mm are fitted with AMP (Tyco? Mate-n-Lock?) connectors on 1-ft flying leads. (For added strain relief, these connectors can be snapped into place through holes in panels or brackets.)
Features
? Torque range: 0.95 to 101 lb-in (0.1 to 11.4 Nm)
? Speed rating to 5000 rpm
? Four frame sizes: 40, 60, 80 and 130 mm
? UL recognized, CE approved and RoHS
? Ambient operating temperature: 32 to 122 ?F (0 to 40 ?C)

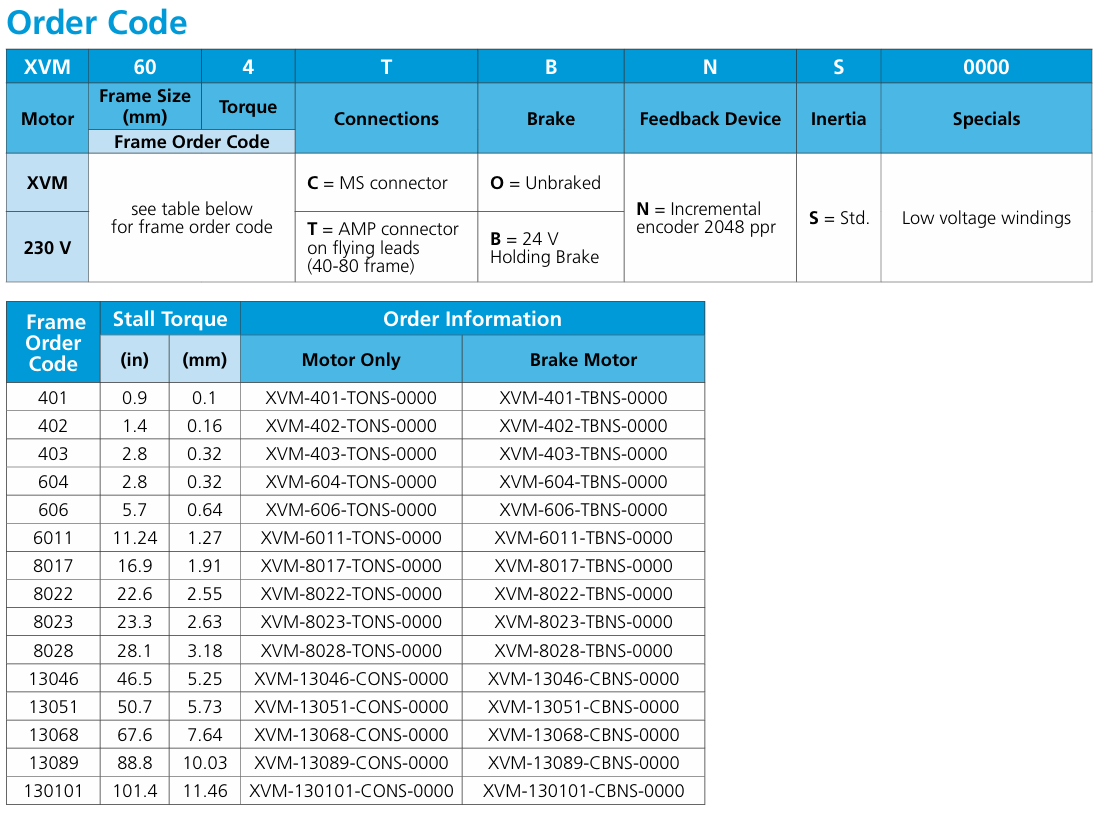

CONTROL TECHNIQUES伺服電機XV系列選型
CONTROL TECHNIQUES伺服電機XV系列其他常用型號：
CONTROL TECHNIQUES XVM-401-TONS-0000
CONTROL TECHNIQUES XVM-402-TONS-0000
CONTROL TECHNIQUES XVM-403-TONS-0000
CONTROL TECHNIQUES XVM-604-TONS-0000
CONTROL TECHNIQUES XVM-606-TONS-0000
CONTROL TECHNIQUES XVM-6011-TONS-0000
CONTROL TECHNIQUES XVM-8017-TONS-0000
CONTROL TECHNIQUES XVM-8022-TONS-0000
CONTROL TECHNIQUES XVM-8023-TONS-0000
CONTROL TECHNIQUES XVM-8028-TONS-0000
CONTROL TECHNIQUES XVM-13046-CONS-0000
CONTROL TECHNIQUES XVM-13051-CONS-0000
CONTROL TECHNIQUES XVM-13068-CONS-0000
CONTROL TECHNIQUES XVM-13089-CONS-0000
CONTROL TECHNIQUES XVM-130101-CONS-0000
