CONTROL TECHNIQUES電機XVM 8022-TONS-5000產品參數

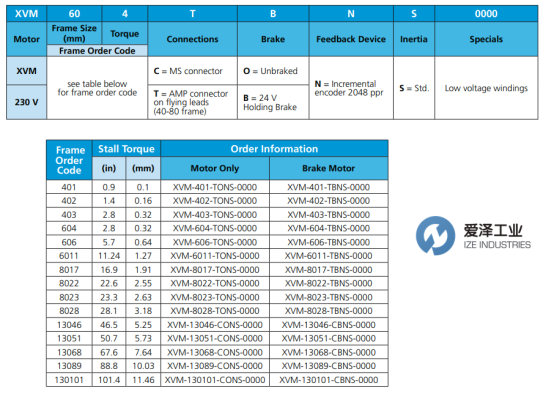

XVM |
8022=22.6 2.55 |
T = AMP connector on flying leads (40-80 frame) |
O = Unbraked |
N = IncremeXVMal encoder 2048 ppr |
S = Std. |
5000=Max. Speed 5000 rpm |
CONTROL TECHNIQUES電機XV系列產品介紹及選型

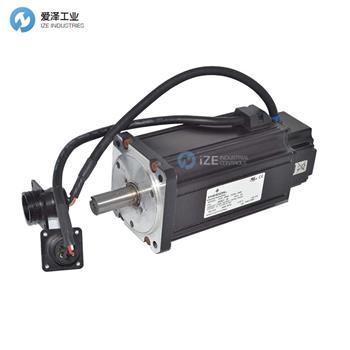

The XV Motor is a high performance, low-inertia and high-torque brushless AC servo motor in a compact economical package – ideal for high-volume applications. UL recognized, CE approved and RoHS compliant, XV Motors offer low-cost solutions with the features of a premium-priced servo offering.
Intended for higher throughputs and smaller machines, XV Motors are available in 4 frame sizes: 40, 60, 80 and 130 mm with speeds ranging from 2000 to 5000 rpm. Applications with continuous torque requirements up to 101 lb-in (11.4 Nm) are the perfect match for XV Motors.
XV Motors with 40, 60 and 80 mm are fitted with AMP (Tyco? Mate-n-Lock?) connectors on 1-ft flying leads. (For added strain relief, these connectors can be snapped into place through holes in panels or brackets.)
Key Features
? Torque range: 0.95 to 101 lb-in (0.1 to 11.4 Nm)
? Speed rating to 5000 rpm
? Four frame sizes: 40, 60, 80 and 130 mm
? UL recognized, CE approved and RoHS
? Ambient operating temperature: 32 to 122 ?F (0 to 40 ?C)
XV 電機是一種高性能、低慣量和高扭矩的無刷交流伺服電機,采用緊湊經濟的封裝,非常適合大批量應用。 XV Motors 獲得 UL 認可、CE 批準并符合 RoHS 標準,提供具有高價伺服產品功能的低成本解決方案。
XV 電機旨在實現更高的吞吐量和更小的機器,提供 4 種機架尺寸:40、60、80 和 130 毫米,速度范圍為 2000 至 5000 rpm。連續扭矩要求高達 101 lb-in (11.4 Nm) 的應用與 XV 電機完美匹配。
40、60和80毫米的XV電機在1英尺飛線上裝有 AMP (Tyco? Mate-n-Lock?) 連接器。(為了增加應力消除,這些連接器可以通過面板或支架上的孔卡入到位。)
主要特點
? 扭矩范圍:0.95 至 101 lb-in(0.1 至 11.4 Nm)
? 額定轉速為 5000 rpm
? 四種框架尺寸:40、60、80 和 130 毫米
? UL 認可、CE 認可和 RoHS
? 環境工作溫度:32 至 122 ?F(0 至 40 ?C)
CONTROL TECHNIQUES電機XVM系列其他常見型號:
CONTROL TECHNIQUES XVM 8022-TONS-5000
CONTROL TECHNIQUES XVM-130101-CBNS-0000
CONTROL TECHNIQUES XVM-130101-CONS-0000
CONTROL TECHNIQUES XVM-13042-CBNS-0000
CONTROL TECHNIQUES XVM-13042-CONS-0000
CONTROL TECHNIQUES XVM-13046-CBNS-0000
CONTROL TECHNIQUES XVM-13046-CONS-0000
CONTROL TECHNIQUES XVM-13051-CBNS-0000
CONTROL TECHNIQUES XVM-13051-CONS-0000
CONTROL TECHNIQUES XVM-13068-CBNS-0000
CONTROL TECHNIQUES XVM-13068-CONS-0000
CONTROL TECHNIQUES XVM-13089-CBNS-0000
CONTROL TECHNIQUES XVM-13089-CONS-0000
CONTROL TECHNIQUES XVM-401-TBNS-0000
CONTROL TECHNIQUES XVM-401-TONS-0000
CONTROL TECHNIQUES XVM-402-TBNS-0000
CONTROL TECHNIQUES motor NEW + ORIGINAL+ ONE YEAR WARRAXVMY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTROL TECHNIQUES電機XVM 8022-TONS-5000的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
