CONTROL TECHNIQUES電機UM, SL, DM系列技術參數
Specification - UM, SL, DM | |
Physical | |
Insulation Class | Class H, BS EN 60034-1. |
Insulation System | USR & CNR Class H Electrical Insulation System designated ‘CTD/1S/2000/01’. |
Dimensional Accuracy | IEC 72-1, Class N (normal class), Class R (precision class) is optional. |
Degree of Balance | Rotor balanced to ISO 1940 (BS 6861) G 6.3 (half key convention to ISO 8821). |
Temperature Monitoring | PTC thermistor, 170oC switch temperature. |
Bearing System | Preloaded ball bearings, metal shielded, high temperature grease. |
Electrical Connections | Connector or terminal box for power and brake; connector for feedback devices and thermistor. |
Flange Mounting | IEC 72-1 as standard / NEMA MG-7 optional. |
Output Shaft | Plain shaft as standard. Output key is optional (to IEC 72-1). |
Environmental | |
Ingress Protection | Motor, excluding mounting face, and with mating connectors and cables fitted. Ingress protection : IP65. |
Operating Temperature | Specified performance at 0-40?C ambient. |
Storage Temperature | -20?C to 70?C. |
Insulation Class | H (180?C) Insulation system UL |
Temperature Rise (Winding) | 125?C over ambient of 40?C Max. |

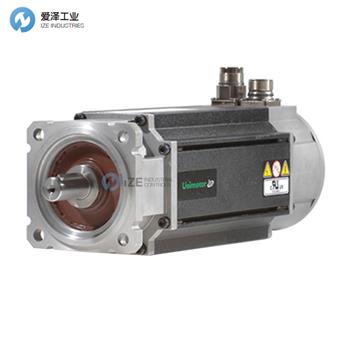

CONTROL TECHNIQUES電機UM系列介紹
UM 電機主要設計用于與 Unidrive 一起運行。
反饋選項包括解析器；或增量式、正余弦單圈、正余弦多圈光學編碼器。
The UM motor has been primarily designed to operate with the Unidrive.
Feedback options include resolver; or incremental, sincos single-turn, sincos multi-turn optical encoders.

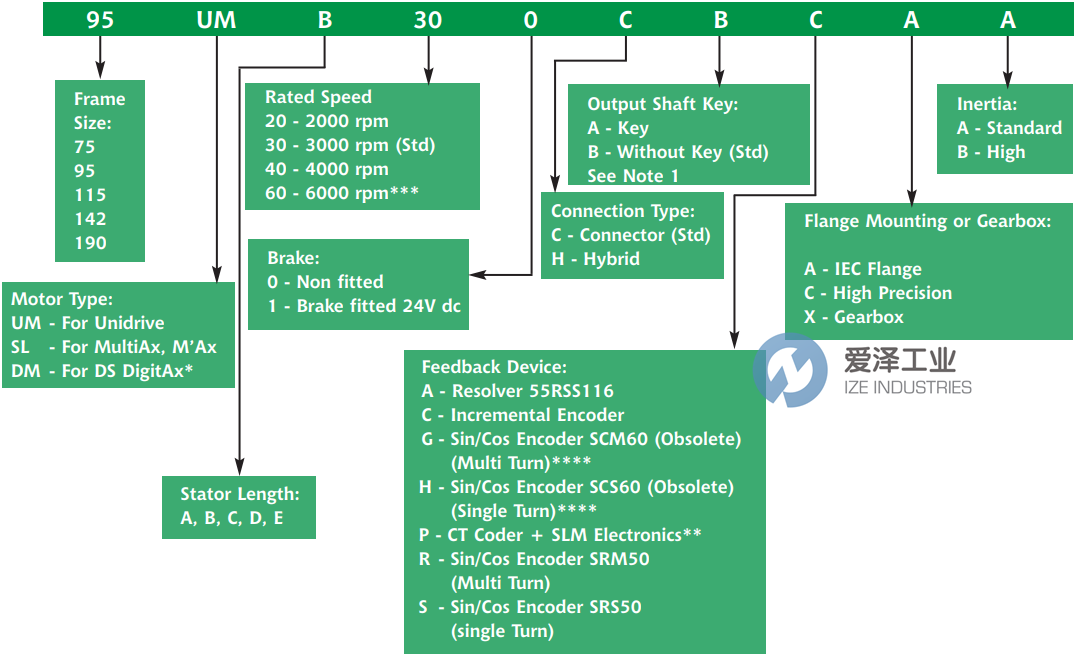

CONTROL TECHNIQUES電機UM, SL, DM系列選型
CONTROL TECHNIQUES電機UM系列其他常用型號：
CONTROL TECHNIQUES 75UMB300CACAA
CONTROL TECHNIQUES 95UMB300CBCAA
CONTROL TECHNIQUES 142UMC300CARAA
CONTROL TECHNIQUES 190UMC300CACAA
CONTROL TECHNIQUES 95UMC200CACAA
CONTROL TECHNIQUES 95UMB300CAGAA
CONTROL TECHNIQUES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTROL TECHNIQUES電機95UMC200CACAA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
CONTROL TECHNIQUES電機UM系列95UMC200CACAA技術參數及選型
