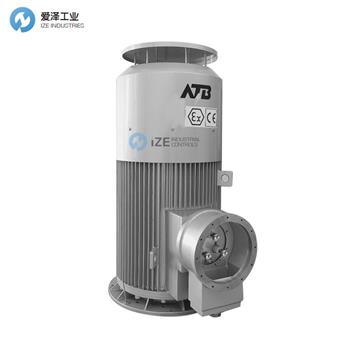

ATB電機CD90L-4Y3技術參數
Engine type: | CD90L-4Y3 |
Overall size: | 90 |
Variant: | Y3 |
Efficiency class 1: | IE3 Premium Efficiency |
Warmth class 1: | F to B |
Ambient temperature max. ℃: | +40 |
Speed 1 [1 / min]: | 1500 |
Voltage 1 [V]: | 230 |
Voltage 2 [V]: | 400 |
Activation / engine start: | direct |
Design: | B5 |
Cable entry: | Execution 1 |
KLK position SEW: | 0 ° |
VITON sealing ring: | Yes |
Pinion DMR standard shaft [mm]: | 14 |
Temperature class / ExpL protection: | T4 |
Expl. Protection dust ATEX: | II 2D Ex tb ⅢC T120 ° C Db |
Painting: | only primed 1K |
Special feature T: | With China Energy Label |
Directive: | 2014/34 / EU |
Engine type: | CD |
Motor type 4 pol .: | L-4 |
Efficiency class 1: | China Energy Label, Grade |
2 | |
Operating mode: | S1-S7 |
P2 power [kW]: | 1.5 |
Ambient temperature min. ℃: | -20 |
Circuit 1: | D |
Circuit 2. | Y |
Frequency 1-2 [Hz]: | 50 |
Special version: | suitable for zone 1 or 21 |
Flange / size: | FF130 |
Cable entry position SEW: | FF130 |
Protection class IP: | 66 |
Type of balancing: | half-key balancing |
Ventilation: | Electrically conductive fan |
Expl. Protection gas ATEX: | II 2G Ex de IIC T4 Gb |
ATEX certificates: | PTB 08 ATEX 1087 X |
RAL / Type: | - |
Flange additional text: | oil-protected |
Motor protection: | PTC sole protection |

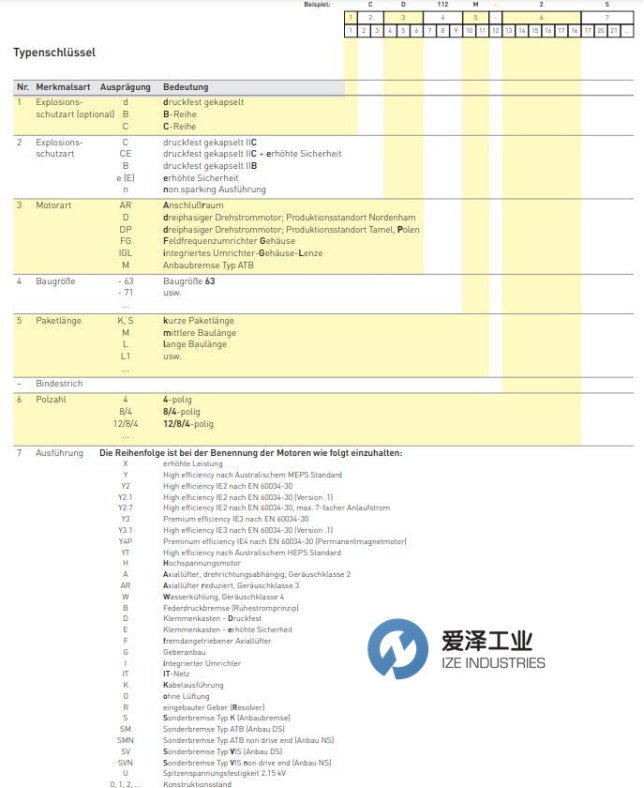

ATB電機CD系列介紹及選型
The normal design of the motors of the CD series corresponds to the highest group IIC and temperature class T4, which include all lower groups and temperature classes. The normal version of the series BD and dBD correspond to group IIB and temperature class T4.
CD系列電機的常規設計對應于最高的IIC組和溫度等級T4，其中包括所有較低的組和溫度等級。BD和dBD系列的常規版本對應于IIB組和T4溫度等級。
ATB電機CD系列其他常用型號：
ATB CD90L-4Y3
ATB CD80M1-4
ATB CD132S2
ATB CD160M1
ATB CD160M2
ATB CD160L
ATB CD180M
ATB CD200L1
ATB CD200L2
ATB CD225M
ATB CD250M
ATB CD280S
ATB CD280M
ATB CD315S
ATB CD315L1
ATB CD315L2
ATB CD315L3
ATB motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ATB電機CD90L-4Y3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ATB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
