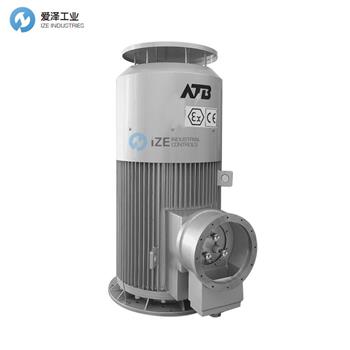

ATB電機CD250M-4Y3產品參數
Specification | |
Engine type: | CD250M-4Y3 |
Frame size: | 250 |
Number of electrical poles: | 4 |
Class efficiency 1: | China-Energy-Labé, Grade 2 |
Operating mode SI-S7, | |
P2 power [kW]: | 55 |
Ambient temperature min. ℃ | -20 |
Circuit 1: | D |
Circuit 2: | Y |
Frequency 1-2 [Hz]: | 50 |
Design: | B3 |
Protection class IP: | 55 |
Integrated frequency converter: | 5 |
FlJ frequency 1 [Hz]: | 4.1 |
Engine type: | CD |
Motor type 4 pol .: | M-4 |
Variant: | Y3 |
Efficiency class 1: | IE3 Premium Efficiency |
Heat class 1 : | F to B |
Ambient temperature max. ℃: | 40 |
Speed 1 [1 / min]: | 1500 |
Voltage 1 [V]: | 380 |
Voltage 2 [V]: | 660 |
Activation / engine start: | direct |
Cable entry: | Version 1 |
Type of balancing: | half-key balancing |
Moment history: | 150 |
FI speed 1 [rpm]: | 264 |
FI power 1 [kW]: | 38 |
FlJ voltage 1 [V]: | 50 |
FI frequency 2 [Hz]: | 55 |
FlJ power 2 [kW]: | 380 |
FI voltage2 [V]: | 55 |
FLJ frequency 3 [Hz]: | 55 |
FU power 3 [kW]: | 380 |
FU operation: | Yes |
Expl. Protection gas ATEX: | Ⅱ 2G Ex db eb ⅡC T4 Gb |
Certificates NEPSI: | GYJ17.1378X |
RAU / type: | 5009 |
Bes. Feature U: | weight 588 kg |
Directive: | 2014/34 / ElJ |
FU torque 1 [Nm]: | 77 |
FU current 1 [A]: | 1500 |
FlJ-Drel number 2 [rpm]: | 356 |
FU torque 2 [Nm]: | 100 |
Drive current 2 [A]: | 1650 |
FI speed 3 [rpm]: | 324 |
FU torque 3 [Nm]: | 100 |
Temperature class / Expl. Protection: | T4 |
Expl. Protection gas NEPSI: | Ex de ⅡC T4 Gb |
Painting: | standard |
Bes. Feature T: | like 563548001 |
Bes. Feature X: | timing-pulse frequ_min_4kHz |
Motor protection: | PTC allele protection |
