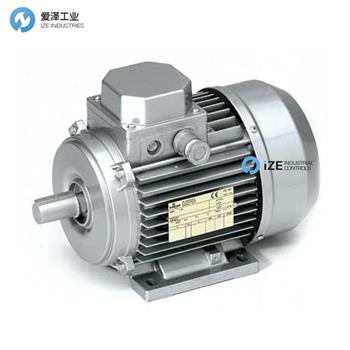

ATB電機BD225S-4Y3技術參數
Motor type: | BD 225S-4Y3 |
Bauarosse: | 225 |
Number of electrical poles: | 4 |
Efficiency class 1: | IE3 |
Warmth class 1: | F to B |
Ambient temperature max. ℃: | 40 |
Circuit 1: | D |
Circuit 2: | Y |
Frequency 1-2 (Hz): | 50 |
Anti-condensation heating (V / Watt): | 230/120 |
Builder: | IMV3 |
Cable entry: | Execution 1 |
Additional KLK for heating on DS: | ATB standard |
Additional KLK for: | heating + PTC |
Type of balancing: | half-key balancing |
FU frequency 1 (Hz): | 5-50 |
Signage: | according to Pre-order |
Additional label 2: | acc. Pre-order |
Painting: | Acid protection - Inshore |
Special feature T: | Replacement for engine no. 566167006 |
Motor protection: | PTC sole protection + Res. PTC |
Engine type: | BD |
Motor type 4 pol.: | S-4 |
Variant: | Y3 |
Operating mode: | S1 |
P2 - power (kw): | 37 |
Ambient temperature min. ℃: | -40 |
Voltage 1 (V): | 400 |
Voltage 2 (V): | 690 |
Activation / engine start: | direct |
Special version: | low temperature version |
Flange / size: | FF400 |
Cable entry (Number x thread): | 1x M50x 1.5 + 3xM25x 1.5 |
Addition KLK for PTC (on DS): | ATB standard |
Protection class IP: | 55 |
Moment curve: | square |
FU operation: | Yes |
Additional label 1: | acc. Pre-order |
Expl. Protection gas ATEX: | II 2G Ex db eb IIB T4 Gb |
RAL / type: | 7035 |
Cable entry additional text: | Metal plug |
