BRECO同步帶32AT10/1010 BFX技術參數
Timing Belt | AT-Series |
Widths (mm) | 32 |
Pitch (mm) | AT10 |
Code | BFX |
Ultimate Tensile Strength (N/10mm belt width) | 6400 |
Maximum Allowable Tensile Strength(N/10mm belt width) | 1600 |
Specific Belt Stiffness Steel Reinforced(Per unit width/length) | 4.00 x 105N |
Specific belt Mass (per 10mm belt width, steel reinforced) | 0.058 kg/m |
Power Transmission | ≤ 70 kW |
Rotational Speed | ca. 10000 min-1 |
Peripheral Speed | ca. 60 ms-1 |
Synchronous Pulley | ab z=15 |

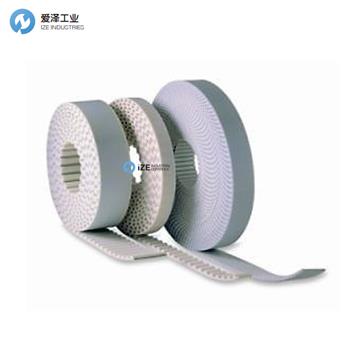

BRECO同步帶AT系列產品介紹
AT系列同步帶被世界公認為高速應用的黃金標準齒形。AT系列具有用于動力傳輸?shù)母邚?qiáng)度，以及用于線性驅動應用的高精度和定位。
高強度張力構件，強度高達標準T系列和英制節距皮帶的2倍
增加張力構件彈簧剛度，以實現更好的可重復性并縮短設置時間
齒剪切強度比標準皮帶高45%
減少背隙（零背隙皮帶輪可實現最高精度）
提供 AT3、AT5、AT10和AT20。
The AT-series of timing belt is regarded world-wide as the gold-standard tooth profile for high-speed applications. AT-series feature high strength for power transmission, and high accuracy and positioning for linear drive applications.
High strength tension members up to 2X the strength of standard T series and Imperial pitch belts
Increased tension member spring rate for better repeatability and reduced setting time
High tooth shear strength up to 45% higher than standard belts
Reduced backlash (zero backlash pulleys available for highest accuracy)
Bifilar tension member design for true
Available in AT3, AT5, AT10 and AT20.

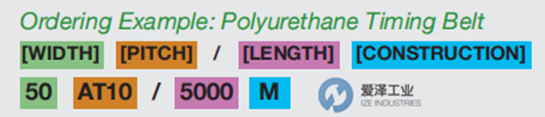

BRECO同步帶AT系列選型
BRECO同步帶AT系列其他常用型號：
BRECO 32AT10/1010 BFX
BRECO 32AT10/440 SFX
BRECO 32AT10/500 BFX
BRECO 32AT10/530 BFX
BRECO 32AT10/560 BFX
BRECO 32AT10/600 SFX
BRECO 32AT10/610 BFX
BRECO 32AT10/630 BFX
BRECO 32AT10/660 BFX
BRECO 32AT10/700 BFX
BRECO 32AT10/720 BFX
BRECO 32AT10/730 SFX
BRECO 32AT10/780 BFX
BRECO 32AT10/800 BFX
BRECO 32AT10/810 BFX
BRECO 32AT10/840 BFX
BRECO 32AT10/850 BFX
BRECO 32AT10/880 BFX
