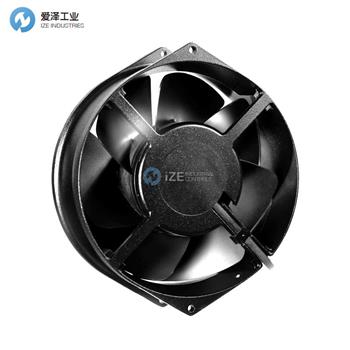

FANDIS風扇A17M23SWBMT0技術參數
Technical data | |
APPROVAL S | |
Approvals | CE; cURus |
PERFORMANCE | |
Max Airflow | 331/391 m3/h |
Max Static Pressure | 137/157 Pa |
RPM | 2800/3250 RPM |
EL ECTRICAL DATA | |
Rated Voltage | 230 V a.c. |
Rated Current | 0.25/0.23 A |
Rated Power | 42/42 W |
Operating Voltage | 207-253 V a.c |
Frequency | 50/60 Hz |
Appllance Class | I |
Insulation Class | F |
Motor Protection | Thermally Protected |
MECHANICAL DATA | |
Bearing | Ball Bearing |
GENERIC DATA | |
Casing Material | Die-Casting Aluminium |
Arlow Direction | Air exhaust over brackets |
Electrical Connection | Wires |
Life Expectancy | 40000 h at 40 °C |
Fan Noise | 49/53 dB(A) |
Cable Length | 350 mm |
Fixing System | Screws |
ENVIRONMENTAL AND THERMAL DATA | |
IP Protection Degree | IP44 |
Operating Temperature | -40÷90 °C |
Storage Temperature | -40÷90 °C |
FANDIS風扇A17M23SWBMT0產品介紹
軸風扇為對溫度敏感的應用提供強制空氣冷卻解決方案。采用交流遮極或電容器和直流無刷電機的緊湊型風扇專為內部機械部件的通風和局部冷卻而設計,尤其適用于狹小空間中的區域。此外,還提供經過測試以抵御惡劣環境條件的版本(IP55、IP68,所有金屬和 HTR 風扇)。
Axial fans provide forced-air cooling solution to temperaturesensitive applications. Compact fans with AC shaded pole or capacitor and DC brushless motor are designed for ventilation and spot cooling of internal machinery components, especially in Areas in confined spaces. Available also versions tested to withstand harsh environmental conditions (IP55, IP68, all metal and HTR fans).
FANDIS風扇其他常用型號:
FANDIS A17M12SWBM00
FANDIS A17M12SWBMF0
FANDIS A17M12SWBMT0
FANDIS A17M23SWBM00
FANDIS A17M23SWBMF0
FANDIS A17M23SWBMT0
FANDIS A17T12SWBM00
FANDIS A17T12SWBMT0
FANDIS A17T23SWBM00
FANDIS A17T23SWBMT0
