BAUER減速機BS60-63L/SO9XA4-TOF-S/ES010A9/C2 規格描述
Type:BS60-63L/SO9XA4-TOF-S/ES010A9/C2 |
5.5kW |
lsoCI F |
100Hz |
380….500V |
N1 3000 |
N2 28.5 r/min |
I 50 |
181.0Nm |
IM H2 |
IP65 |
6.7L |
PGLP 220 |
tamb -20...40℃ |
S1 |
I103.7 |
117.8KG |

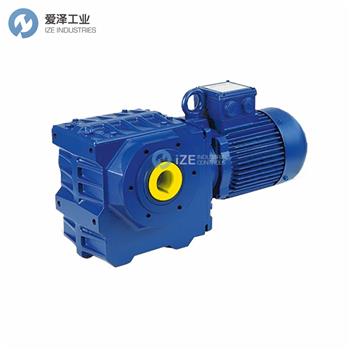

BAUER減速機BS03系列產品介紹
BS03齒輪電機是經濟的直角蝸輪蝸桿減速電機，可輕松安裝在最嚴格的應用中。經濟的直角蝸輪蝸桿馬達具有無與倫比的功能，包括最小尺寸的空心軸，為可靠性，效率和經濟性樹立了新標準。逆變器友好的設計提供了現在輕松集成和真正面向未來的解決方案。BS03齒輪電機在安裝選項（包括軸，基座，端面和法蘭解決方案）中提供了完全的靈活性。電機接線盒可以安裝在圍繞電機框架以90o步進旋轉的替代位置中，從而提供了集成可能性。
BS齒輪電機符合北美和國際標準，包括NEMA，IEC，CSA和CE，BS系列可為世界各地接受，這是全球客戶的真正整體解決方案。
防護等級達IP65。符合IEC 529的要求可確保BS系列具有防塵和防水的性能，并且可以在室外或潮濕多塵的環境中使用，而無需使用其他外殼。在設備的輸出軸上可獲得全額定輸出。
BS gear motors are economical, right-angle, worm-geared motors that install easily in the tightest applications. Economical right angle worm geared motors set new standards for reliability, efficiency and economy with unparalleled features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BS gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90o steps around the motor frame providing for unparalleled integration possibilities.
BS gear motors comply with North American and International standards, including NEMA, IEC, CSA, and CE, the BS series allows for worldwide acceptance, a true total solution for our global customers.
Superior protection of IP65 acc. to IEC 529 assures you that the BS series is dust tight and hose proof,and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.
BAUER減速機BS系列其他常用型號：
BAUER BS03-34H/D08MA4
BAUER BS03-34H/D08MA4-TOF
BAUER BS60-63L/SO9XA4-TOF-S/ES010A9/C2
BAUER BS03-34V/D08MA4-TOF
BAUER BS03-37V/D05LA4/SP
BAUER BS03-37V/D06LA4/SP
BAUER BS60-63L/SO9XA4-TOF-S/ES010A9/C2
BAUER BS03-38H/D06LA4
BAUER BS60-63L/SO9XA4-TOF-S/ES010A9/C2
BAUER BS03-63L/D07LA4-S/E003B9
BAUER BS03-63U/DO7LA4-S/E003B9
BAUER BS03-81/D05LA4-TOF/SP
BAUER motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUER減速機BS60-63L/SO9XA4-TOF-S/ES010A9/C2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BAUER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BAUER減速機BS60-63L/SO9XA4-TOF-S/ES010A9/C2產品參數
