BAUER電機BF50-04/DSE11MA4技術參數
TYPE:BF50-04/DSE11MA4 |
4kw |
cosφ 0.83 |
S3/S6-75% |
soci F |
50Hz |
380V |
8.8A |
N1 1420 |
N2 34r/min |
I 42.15 |
1120Nm |
IM H4 |
IP65 |
5L |
CLP 220 |
tamb -20…..40℃ |
109.8KG |

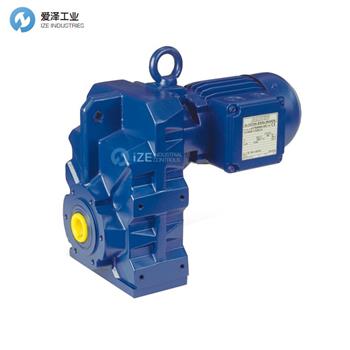

BAUER電機BF系列產品介紹
可靠的BF齒輪電機為可靠性,效率和經濟性設立了新標準,并包括標準功能,包括最小尺寸的空心軸。逆變器友好型設計可實現輕松集成,是一種真正面向未來的解決方案。BF齒輪電機在安裝選項方面提供了全面的靈活性,包括軸,底座,表面和法蘭解決方案。電機接線盒可以安裝在圍繞電機框架以90°步進旋轉的替代位置,提供無與倫比的集成可能性。
IP65防護等級。符合IEC 529標準,確保BF系列具有防塵和防水功能,可在室外或潮濕多塵的環境中使用,無需使用額外的外殼。該裝置的輸出軸可提供滿額定輸出。
Our reliable BF gear motor sets new standards for reliability, efficiency and economy and includes unparalleled standard features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BF gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90° steps around the motor frame providing for unparalleled integration possibilities.
Superior protection of IP65 acc. to IEC 529 assures you that the BF series is dust tight and hose proof, and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.
BAUER電機BF系列其他常見型號:
BAUER BF40-04/DPE11LA4C-TF/SP
BAUER BF50-04/DSE11MA4
BAUER BF10-71/D05LA4
BAUER BF90Z-05A/D16XA64-TF-S/E100A9HN
BAUER BF90Z-05WA/D16XA64-TF-S
BAUER BF50-04/D11MA4-TOF/SP
BAUER BF40-74/D11SA-TX/C2-SP
BAUER BF40Z-74WD08LA4-TX/C2/SP
BAUER BF60Z-74/D11SA42-TX/C2-SP
BAUER BF70-05A/DHE18LB4
BAUER BF30-04/DPE11MA4-TF
BAUER BF70-05A/D16XA4
BAUER BF60-24/DSE11SA4
BAUER BF90Z-74/DSE11MA4-TF-S/ESX070A8
BAUER BF40-04/D09SA4-TF-S/Z008B5
BAUER BF60Z-74W/D09LA4-TF-D
BAUER BF80-71/DHE18XB6
BAUER BF50-65RL/D08MA4-TF-S/ESX010A9
BAUER BF60-24/D11SA4/SP
BAUER BF40-04/D09SA4-TF-S/Z008B5
BAUER BF10-04/DHE09SA4-S/ESX010A9HN/SP
BAUER BF70-04/DRU13LA6-TF
BAUER motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUER電機BF50-04/DSE11MA4的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for BAUER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our weBFite: jjxdch.cn.
BAUER電機BF50-04/DSE11MA4產品參數
