BAUER電機BK10-84/D09LA4-FV-S/ESX027A9HN/SP技術參數
Type:BK10-84/D09LA4-FV-S/ESX027A9HN/SP |
1.5kW |
cosφ0.80 |
S1 |
lsoCI F |
50Hz |
400V |
3.6A |
n1 1400 |
n2 183r/min |
I 7.68 |
72Nm |
IM H1 |
IP 65 |
0.83L |
CLP 220 |
tamb -20….40℃ |
42.5kg |
180VDC 0.26A |
22.0Nm |
380….420VAC 0.18A |

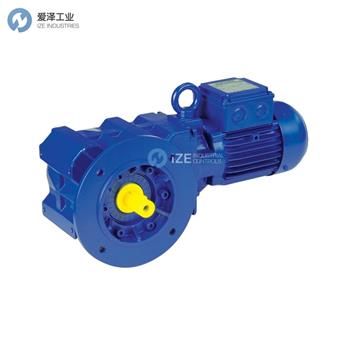

BAUER電機BK系列產品簡介
可靠的BK齒輪電動機為可靠性，效率和經濟性樹立了新標準，并具有標準功能，包括最小尺寸的空心軸。逆變器友好的設計提供了現在輕松集成和真正面向未來的解決方案。BK齒輪電機在安裝選項（包括軸，基座，端面和法蘭解決方案）方面提供了完全的靈活性。電機接線盒可以安裝在圍繞電機框架以90o步進旋轉的替代位置中，從而提供了優秀的集成可能性。
防護等級達IP65。符合IEC 529的要求向您保證BK系列具有防塵和防水的性能，并且可以在室外或潮濕多塵的環境中使用，而無需使用其他外殼。在設備的輸出軸上可獲得全額定輸出。
Our reliable BK geared motor sets new standards for reliability, efficiency and economy and includes unparalleled standard features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BK gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90o steps around the motor frame providing for unparalleled integration possibilities.
Superior protection of IP65 acc. to IEC 529 assures you that the BK series is dust tight and hose proof,and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.
BAUER電機BK系列其他常見型號：
BAUER BK60-54VL/DSE16XB4-TF-S/ES125A9/SP
BAUER BK60-11LW/DHE09XA4C-TX-G-S/ESX027A7HN/SP
BAUER BK60G20-34V/DWU09XA12-S/E008B2
BAUER BK60ZX-34V/DSE09LA4-S/ESX010A9/SP
BAUER BK10-84/D09LA4-FV-S/ESX027A9HN/SP
BAUER BK60-11LW/DHE09XA4C-TX-S/ESX027A7HN/SP
BAUER motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUER電機BK10-84/D09LA4-FV-S/ESX027A9HN/SP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BAUER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BAUER電機BK10-84/D09LA4-FV-S/ESX027A9HN/SP產品參數
