GGB軸承1210DU技術參數

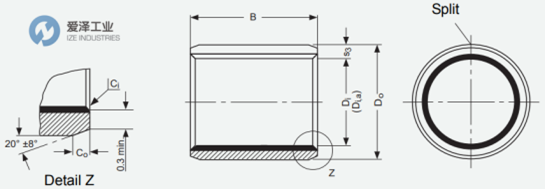

Part No. | 1210DU |
Outside Co and Inside Ci chamfers | Co (a) |
Nominal Diameter | Di 12 |
Wall thichness s3 | max. 1.005 |
Width B | max. 10.25 |
Shaft-? DJ [f7] | max. 11.984 |
Housing?? DH [H7] | max. 14.018 |
Bush-? Di,a Ass. in H7 housing | max. 12.058 |
Clearance CD | max. 0.092 |
GGB軸承DU系列介紹
? DU自潤滑剖分式襯套在干運行條件下的各種負載、速度和溫度范圍內提供非常好的磨損和低摩擦性能
? 適用于潤滑應用的襯套材料
? 適用于線性、擺動和旋轉運動的抗摩擦軸承
? 符合標準 FAR 25.853 和 FAR 25.855(聯邦航空條例)和 ASTM E162:2016 – 飛機內部應用的表面可燃性測試
? 經測試 符合 ASTM E595/ECSS-Q-ST-70-02C - 航天器設備中使用的材料的除氣特性
? 符合標準 DIN EN 1797 和 ISO 21010(低溫容器 - 氣體/材料兼容性),適用于氣態和液態氧中的管道、閥門、配件和其他組件,最高溫度為 60°C,氧氣壓力為 25 bars。
? DU self-lubricating split bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
? Bushing material suitable for lubricated applications
? Anti-friction bearing suitable for linear, oscillating and rotating movements
? Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications
? Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment
? Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars.
GGB軸承DU系列其他常用型號:
GGB 1006DU
GGB 1008DU
GGB 1010DU
GGB 1012DU
GGB 1015DU
GGB 1020DU
GGB 1208DU
GGB 1210DU
GGB 1212DU
GGB 1215DU
GGB 1220DU
GGB 1225DU
GGB 1310DU
GGB 1320DU
GGB Cylindrical Bushes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GGB軸承1210DU的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for GGB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
