BALDOR電機M3541-57 34A061Y004G3規格描述

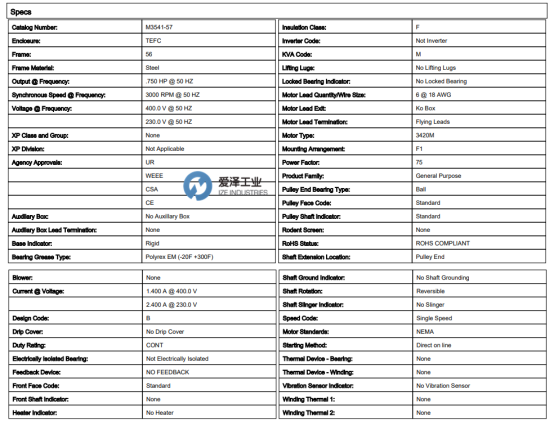

SPECS | |
Output | 0.750 hp |
Phase | 3 |
Synchronous Speed | 3,000 rpm |
Frequency | 50.00 Hz |
Voltage | 400 V |
Frame Material | Steel |
Frame | 56 |
XP Class and Group | NONE |
XP Division | Not Applicable |
Brand | Baldor-Reliance |
Agency Approvals | CE |
Ambient Temperature | 40 °C |
Auxillary Box | No Auxillary Box |
Auxillary Box Lead Termination | None |
Base Indicator | Rigid |
Bearing Grease Type | POLYREX EM (-20F +300F) |
Blower | None |
Current | 2.4 A @ 230 V |
Design Code | B |
Drip Cover | No Drip Cover |
Duty Rating | CONT |
Efficiency @ 100% Load | 75.50% |
Electrically Isolated Bearing | Not Electrically Isolated |
Feedback Device | No feedback |
Front Face Code | Standard |
Front Shaft Indicator | None |
Heater Indicator | No heater |
High Voltage Full Load Amps | 1.4 A |
Insulation Class | F |
Inverter Code | Not inverter |
KVA Code | M |
Lifting Lugs | No Lifting Lugs |
Locked Bearing Indicator | No Locked Bearing |
Motor Lead Exit | KO Box |
Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
Motor Lead Termination | Flying Leads |
Motor Standards | NEMA |
Motor Type | 3420M |
Number of Poles | 2 |
Overall Length | 11.35 in |
Power Factor | 75 |
Product Family | General Purpose |
Pulley End Bearing Type | Ball |
Pulley Face Code | Standard |
Pulley Shaft Indicator | Standard |
Rodent Screen | None |
RoHS Status | RoHS Compliant |
Service Factor | 1.25 |
Shaft Diameter | 0.625 in |
Shaft Extension Location | Pulley End |
Shaft Ground Indicator | No Shaft Grounding |
Shaft Rotation | Reversible |
Shaft Slinger Indicator | No Slinger |
Speed | 2,850 rpm |
Speed Code | Single Speed |
Starting Method | Direct on line |
Thermal Device - Bearing | None |
Thermal Device - Winding | None |
Vibration Sensor Indicator | No Vibration Sensor |
Winding Thermal 1 | None |
Winding Thermal 2 | None |
BALDOR電機M3541-57 34A061Y004G3產品介紹

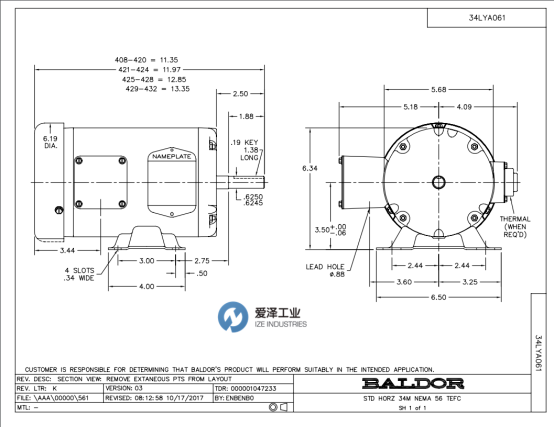

BALDOR電機M3541-57 34A061Y004G3尺寸圖

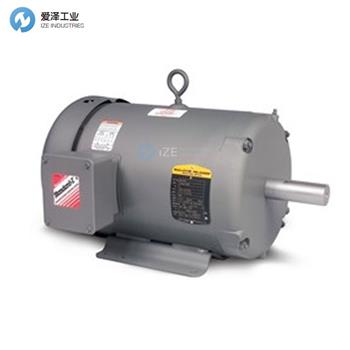

BALDOR交流電機34A061Y004G3
愛澤工業(IZE INDUSTRIES)特價經銷、常用BALDOR交流電機型號：
BALDOR 34EP3102A01SP
BALDOR 34EP3102A02SP
BALDOR 34FN3002A01SP
BALDOR 34FH4002A01SP
BALDOR 34A061Y004G3
BALDOR M3541-57
BALDOR MN416A01
BALDOR MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BALDOR電機M3541-57的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BALDOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BALDOR電機M3541-57 34A061Y004G3選型及介紹
