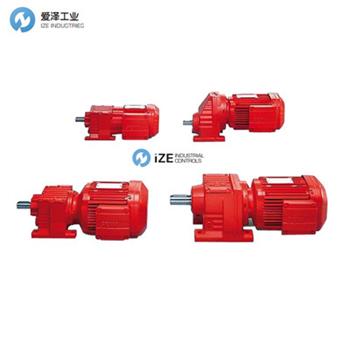

SEW R series motor technical information
R series (two-stage and three-stage)
Our complete range of helical gearmotors provides the optimum size and power solution for every drive task. And for applications where weight is an issue, our multi-stage gear units provide something special: Thanks to their die-cast aluminum design, the models R07, R17 and R27 are three particularly efficient lightweights – ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements.
Gear unit reduction ratio[i]：3.21 - 289.74
Multi-stage gear unit reduction ratio[i]：90 - 27001
Output torque[Nm]([in-lb])：50 - 18000 (440 to 159300)
Motor power range[kW] ([hp])：0.12 - 90 (0.16 to 120)
RX series (single-stage)
For high output speeds, the exclusively single-stage gear units RX57 to RX107 offer compact solutions for your system design.
Gear unit reduction ratio[i]:1.30 - 8.65
Output torque[Nm] ([in-lb]):69 - 830 (610 - 7340)
Motor power range[kW] ([Hp]):0.12 - 45 (0.16 to 60)
RM series
RM gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.
Gear unit reduction ratio[i]:4.29 to 289.74
Multi-stage gear unit reduction ratio[i]:134 to 27001
Output torque[Nm] ([in-lb]):270 to 18000 (2380 to 159300)
Motor power range[kW] ([hp]):0.12 to 160 (0.16 to 215)
Your advantages
High torque density
Long service life
R37 ... R167 Reduced backlash option
Helical gear unit versions
Single-stage | Size | |||||||
57 | 67 | 77 | 87 | 97 | 107 | |||
RX.. | Foot-mounted | RX57 | RX67 | RX77 | RX87 | RX97 | RX107 | |
RXF.. | Flange-mounted | RXF57 | RXF67 | RXF77 | RXF87 | RXF97 | RXF107 | |
Multi-stage | Size | |||||||
7 | 17 | 27 | 37 | 47 | 57 | 67 | ||
R.. | Foot-mounted | R07 | R17 | R27 | R37 | R47 | R57 | R67 |
R..F | Foot-mounted and flange-mounted | R07F | R17F | R27F | R37F | R47F | R57F | R67F |
RF.. | B5 flange-mounted | RF07 | RF17 | RF27 | RF37 | RF47 | RF57 | RF67 |
RZ.. | B14 flange-mounted | RZ07 | RZ17 | RZ27 | RZ37 | RZ47 | RZ57 | RZ67 |
RM.. | Flange-mounted with extended bearing hub | – | – | – | – | – | RM57 | RM67 |
Multi-stage | Size | |||||||
77 | 87 | 97 | 107 | 137 | 147 | 167 | ||
R.. | Foot-mounted | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
R..F | Foot-mounted and flange-mounted | R77F | R87F | R97F | R107F | R137F | R147F | R167F |
RF.. | B5 flange-mounted | RF77 | RF87 | RF97 | RF107 | RF137 | RF147 | RF167 |
RZ.. | B14 flange-mounted | RZ77 | RZ87 | – | – | – | – | – |
RM.. | Flange-mounted with extended bearing hub | RM77 | RM87 | RM97 | RM107 | RM137 | RM147 | RM167 |
