ATB電機CD132S-4 Y3產品參數
Rotor weights | 2p=4 1500 rpm：15.2 2p=6 1000 rpm：19.0 2p=8 750 rpm：17.6 |
Frame size | CD…132S-4 |
Out- put P2 [kW] | 5,5 |
Rated current at 400 V [A] | 10,8 |
Rated current at 500 V [A] | 8,6 |
Speed n [rpm] | 1440 |
Efficiency [%] IE1 | 86,5 |
Power factor cos φ | 0,85 |
Torque M [Nm] | 36,5 |
Starting torque MA/MN | 2,5 |
Starting current IA/IN | 6,4 |
Stalling torque MK/MN | 2,7 |
Momenting of inertia J [kgm2] | 0,0220 |
Weight m [kg] | 100 |
Noise levels with radialflow fan LP [dB(A)] | 57 |
Noise levels with radialflow fan LW [dB(A)] | 70 |
Noise levels with axial-flow fan Type…A LP [dB(A)] | 55 |
Noise levels with axial-flow fan Type …A LW [dB(A)] | 68 |
ATB電機CD132S-4 Y3產品介紹

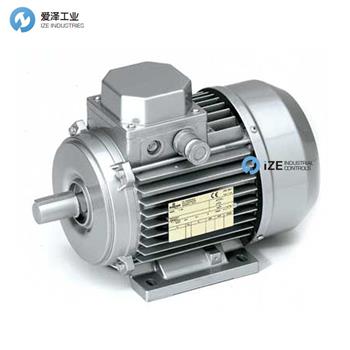

ATB電機CD132S-4 Y3
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ATB 電機部分型號：
ATB CD63M1-4
ATB CD63M2-4
ATB CD71M1-4
ATB CD71M2-4
ATB CD80M1-4
ATB CD80M2-4
ATB CD90S-4
ATB CD90L-4
ATB CD100L1-4
ATB CD100L2-4
ATB CD112M-4
ATB CD132S-4
ATB CD132M-4
ATB CD160M-4
ATB CD160L-4
ATB CD180M-4
ATB CD180L-4
ATB CD200L-4
ATB CD225S-4
ATB CD225M-4
ATB CD250M-4
ATB CD280S-4
ATB CD280M-4
ATB CD315S-4
ATB CD315M-4
ATB CD315L1-4
ATB CD315L2-4
ATB CD315L3-4
ATB CD355L1-4
ATB CD355L2-4
ATB MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ATB電機CD132S-4 Y3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ATB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
