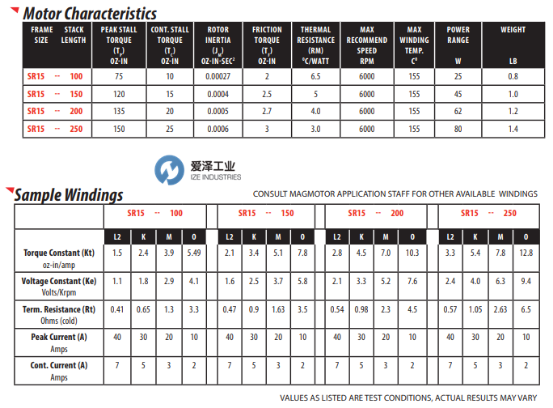

MAGMOTOR 有刷電機SR15系列產品參數
Product Category | DC Motors |
Performance Specifications | |
Shaft Speed | 6000 rpm |
Continuous Current | 5 amps |
Continuous Torque | 0.9375 In-lbs (1.08 kg-cm) |
Output Power | 0.0603 HP |
Torque Constant | 3.5 in-oz/amp (24.72 mN-m/amp) |
Rotor Inertia | 4.00E-4 oz-in-sec2 (0.0028 kg-cm2) |
Motor Type | |
DC Construction | Permanent Magnet |
Commutation | Brush |
Shaft Orientation | In-line; Single-ended |
Gearing Options | |
Gearing | Motor Only (No Gearhead) |
Housing / Enclosure | |
Units | English |
Motor Shape | Cylindrical Body |
Diameter / Width | 1.50 inch (38 mm) |
Length | 3.11 inch (79 mm) |
Other Specifications | |
Feedback | Integral Encoder (optional feature) |
Features | Servomotor |
Environment | |
Operating Temperature | 311 F (155 C) |
Environment | Totally Enclosed |
MAGMOTOR有刷電機SR15系列產品介紹
高能釹磁鐵
最大扭矩為150 oz in
優良的扭矩重量比
1.5“電機直徑適用于
受限空間應用
高轉速運行
High Energy Neodymium Magnets
Peak Torque to 150 oz-in
Excellent Torque to Weight Ratio
1.5” Motor Diameter is Ideal for
Restricted Space Applications
High RPM Operation

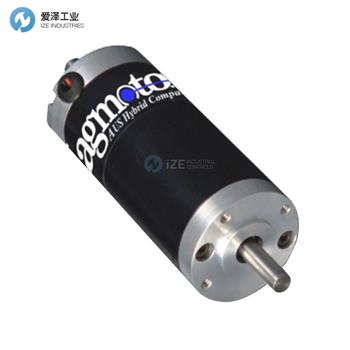

MAGMOTOR 有刷電機SR15系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件MAGMOTOR 有刷電機部分型號：
MAGMOTOR S15-K-150
MAGMOTOR SR15-I-100
MAGMOTOR SR15-I-150
MAGMOTOR SR15-I-250
MAGMOTOR SR15-K-100
MAGMOTOR SR15-K-250
MAGMOTOR SR15-M-100
MAGMOTOR SR15-M-150
MAGMOTOR SR15-M-250
MAGMOTOR SR15-O-100
MAGMOTOR SR15-O-150
MAGMOTOR SR15-O-250
MAGMOTOR DC Motors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGMOTOR有刷電機SR15系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAGMOTOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
