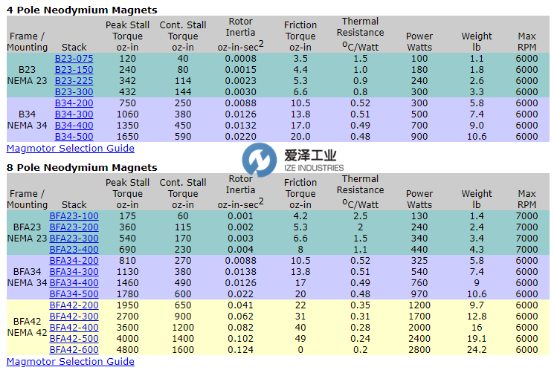

MAGMOTOR 無刷電機B23系列產品參數
Product Category | Brushless Motors |
Motor Type | DC; Servomotor |
Shaft Orientation | In-line; Single-ended |
Shaft Size | 0.375 inch (9.5 mm) |
Shaft Speed | 6000 rpm |
Torque Constant | 2.67 in-oz/amp (18.86 mN-m/amp) |
Continuous Torque | 2.5 In-lbs (2.88 kg-cm) |
Output Power | 0.1340 HP |
DC Construction | Permanent Magnet |
AC Motor Construction | |
DC Voltage | 24.0 to 170.0 VDC |
Rotor Inertia | 8.00E-4 oz-in-sec2 (0.0056 kg-cm2) |
Gearing Options | |
Gearing | Motor Only (No Gearhead) |
Feedback | |
Feedback | Integral Encoder (optional feature) |
Housing / Enclosure | |
Units | English |
Motor Shape | Cylindrical Body |
Diameter / Width | 2.25 inch (57 mm) |
Length | 2.92 inch (74 mm) |
NEMA Frame | 23 |
Other Specifications | |
Features | Brake (optional feature); Totally Enclosed |
Environment | |
Operating Temperature | 311 F (155 C |
MAGMOTOR無刷電機B23系列產品介紹
高能釹磁鐵
工作轉速至6000轉/分
高扭矩尺寸比
編碼器就緒
NEMA 23法蘭安裝
提供CE證書
24-170 Vdc典型總線電壓
High Energy Neodymium Magnets
Operating Speeds to 6,000 RPM
High Torque to Size Ratio
Encoder Ready
NEMA 23 Flange Mounting
CE Certificate Available
24-170 VDC Typical Bus Voltage

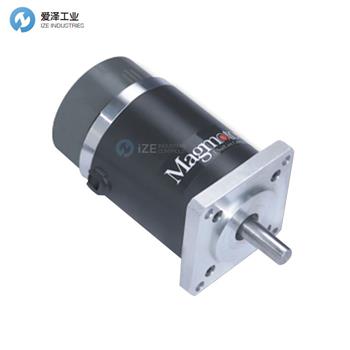

MAGMOTOR 無刷電機B23系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件MAGMOTOR 無刷電機部分型號：
MAGMOTOR B23-E-075
MAGMOTOR B23-E-150
MAGMOTOR B23-E-225
MAGMOTOR B23-E-300
MAGMOTOR B23-G-075
MAGMOTOR B23-G-150
MAGMOTOR B23-G-225
MAGMOTOR B23-G-300
MAGMOTOR B23-I-075
MAGMOTOR B23-I-150
MAGMOTOR B23-I-225
MAGMOTOR B23-I-300
MAGMOTOR B23-K-075
MAGMOTOR B23-K-150
MAGMOTOR B23-K-225
MAGMOTOR B23-K-300
MAGMOTOR Brushless Motors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGMOTOR無刷電機B23系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAGMOTOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
