FUJI電機MLA8115Z-6A2.2產品參數
規格 | ||
Degree of protection | Totally-enclosed fan-cooled outdoor use (IP44) | |
Output range | 0.2-200kW | |
Power supply | 37kW or less | |
Item in-stock | Horizontal-mount | |
Type | MLA | |
Output range | 0.2-200kW | |
Frame size | 63M-315M | |
Rated voltage, | Item in-stock | 37kW or less:200/ 200220 V and 380 400 415/ 400 440 460 V, 50/60Hz *2 |
45kW or more:200-400/ 200-400/220-440 V, 50/60Hz | ||
Output rating | S1 (Continuous) | |
Starting method | 3.7kW or less: Direct-on-line (full voltage) starting | |
5.5kW or more: Star-delta starting | ||
Thermal class | 112M or less: 120(E), 132-180M: 130(B), 180L or more: 155(F) | |
Rotational direction | Counterclockwise viewed from Drive End (CCW) | |
Environmental condition | Ambient temperature | -20°C to +40°C |
Humidity | 100% or less (no condensation) | |
Altitude | 1000m or less | |
Atmosphere | Not for use in environments with steam, or in corrosive or explosive gases | |
Terminal box | Location (Horizontal-mount) | 225S or less: Left side viewed from Drive End |
Cable entry(Horizontal-mount) | 200L or less: Non-driving side | |
Variable at 90° intervals. | ||
Material | Sheet-steel | |
Lead wire | Connection | 63M to 132M: Terminal board connection (Screw bolt terminal connection in terminal box) |
160M or more: Lug terminal connection (Lead wire connection with crimp terminal in terminal box) | ||
Number | 3.7kW or less: Three *3 | |
Finished color | Munsell N5 (Gray) | |
Standards | JIS,JEC,JEM | |
FUJI電機MLA系列特點
? 采用優質材料，優化槽形等合理設計，從開始到運行，實現了安全，經濟的優越特性。
? 采用專有的最新技術優化了風扇罩和外部風扇形狀等，并實現了風噪降低和降噪。

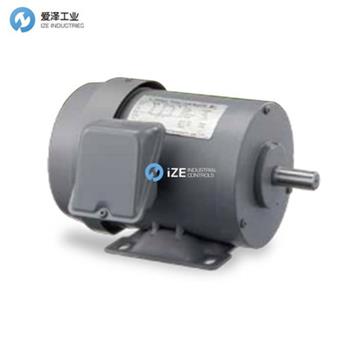

FUJI電機MLA8115Z-6A2.2
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件FUJI電機部分型號：
FUJI MLA8115Z-4A3 7 3 7KW 4P 380V
FUJI MLA8115Z-2A3 7 3 7KW 2P 200V,'200 220V
FUJI MLH8065M-0.2KW-2P
FUJI MLH8075M-0.4KW-2P
FUJI MLH8085M-O.75KW-2P
FUJI MLH8096M-1.5KW-2P
FUJI MLH8097M-2.2KW-2P
FUJI MLA8115M-3.7KW-2P
FUJI MLA8132M-5.5KW-2P
FUJI MLA8133M-7.5KW-2P
FUJI MLA8164M-11KW-2P
FUJI MLA8165M-15KW-2P
FUJI MLA8167M-18.5KW-2P
FUJI MLA8185M-22KW-2P
FUJI MLA8187M-30KW-2P
FUJI MLA8206M-37KW-2P
FUJI MLA8207M-45KW-2P
FUJI MLA9220A-55KW-2P
FUJI MLH6062A-0.1KW-4p
FUJI MLH8065M-0.2KW-4p
FUJI MLH8075M-0.4KW-4p
FUJI MLH8085M-0.75KW-4p
FUJI MLH8097M-1.5KW-4p
FUJI MLA8115A-3.7KW-4P
FUJI MLA8133A-5.5KW 4P
FUJI MLA8135A-7.5KW-4p
FUJI MLA8165A-11KW-4p
FUJI MLA8167A-15KW-4p
FUJI MLA8184A-18.5KW-4P
FUJI MLA8185A-22KW-4p
FUJI MLA8206A-37KW-4p
FUJI MLA8207A-45KW-4p
FUJI MLA9221A-55KW-4p
FUJI MLH8075M-0.2KW-6P
FUJI MLH8085M-0.4KW-6P
FUJI MLA8107A-1.5KW 6
FUJI MLA8115A-2.2KW-6P
FUJI MLA8133A-3.7KW 6P
FUJI MLA8135A-5.5KW 6P
FUJI MLA8165A-7.5KW 6P
FUJI MLA8167A-11KW-6P
FUJI MLA8185A-15KW-6P
FUJI MLA8186A-18.5KW-6P
FUJI MLA8187A-22KW-6P
FUJI MLA8206A-30KW-6P
FUJI MLA8207A-37KW-6P
FUJI MLA9221A-45KW-6P
FUJI MLA9251A-55KW-6P
FUJI motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FUJI電機MLA系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FUJI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FUJI電機MLA系列MLA8115Z-6A2.2技術參數
