M2QA系列標準三相異步電動機
M2QA系列標準三相異步電動機是M2000系列產品中的基本系列,符合歐洲共同體II級效率標準,高效可靠、節能環保。該系列電機引進全套歐洲生產工藝,噪音低、壽命長,適用于各種惡劣環境,被廣泛應用于各行各業。

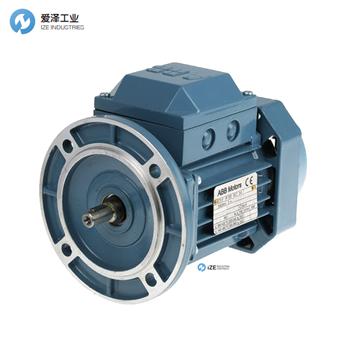

M2QA Series IEC Low-voltage Three-phase Induction Motors
As the standard series of ABB M2000 family, the M2QA series IEC low-voltage three-phase induction motors are in conformity with efficiency class 2 of CEMEP-EU. High efficiency assures energy savings, and high reliability reduces the faulty time and the maintenance costs. The motors are designed and manufactured according to European technology, including features such as low noise level and long life cycle. M2QA motors are suitable for various environments and operate in a wide range of different industrial areas.
M2QA優點
·高效節能,降低營運成本,讓最終用戶在最短時間內收回采購成本。
·可靠性高,保障設備連續平穩運行;故障率低,降低維護成本。
·采用進口軸承,先進工藝,使電機壽命更長。
·柔性設計,可按客戶要求加裝多種附件
Outstanding Features of M2QA Motors
·High efficiency and energy saving in combination with high reliability reduces the operation costs.
·Advanced production technology assures accurate products.
·Motors are equipped with imported bearings.
·Flexible design with choice of additional accessories fulfills most customers’ requirements.
產品特點
1)電機參照國際標準設計制造
·IEC60034和IEC60072國際電工委員會
·BS4999英國標準
·AS1359 - 2澳大利亞標準
·DIN42673德國標準
2)電機符合下列標準
·GB755
·GB10069
·Q/JBQS36
Product Features
1) These motors are built to comply with current International Standards.
·International Electro-technical Commission - IEC60034and IEC60072
·British Standard - BS4999
·Australian Standard - AS1359 - 2
·German Standard - DIN42673
2) These motors are built to comply with current National Standards.
·GB755
·GB10069
·Q/JBQS36
標準
高效率
1.1 - 90 kW,2極和4極,24小時運轉,M2QA系列達到CEMEP-EU的II級效率標準,具有較好的節能效果。
軸承具有較高承載能力
配置深溝球軸承,大大延長電動機的工作壽命。
71 -225鑄鐵電動機配有免潤滑軸承
50 -355電動機標準配置裝有注排油裝置
寬電壓設計
高達690V且可應用于50Hz和60Hz電網。
低噪音水平
M2QA系列通過改善電磁和電氣設計、冷卻系統及結構優化和高技術,使電動機噪音降至最低程度。
可靠的繞組
繞組采用最新技術的絕緣材料,可達至F級絕緣和B級溫升(80K),確保繞組的使用壽命長。
防腐蝕能力強
電動機防腐蝕能力強,在惡劣的條件下仍可正常運行。
額外的繞組保護
可按客戶要求加裝PTC熱敏電阻、熱敏開關和防冷凝裝置。
Standards
High efficiency
1.1 -90 kW, 2P and 4P, in S1 duty, M2QA motors are among the class 2 of CEMEPEU standard, saving energy and operating costs.
Bearings with high load capacity
All motors are provided with deep-groove ball bearings, the lifetime is extended. Cast iron motors in sizes 71 - 225 are greased for life, and those in sizes 250 – 355 have a regreasing device as a standard.
Voltage ranges of extra versatility
A wide range of voltages can be up to max. 690 V, for 50 Hz and 60 Hz is available.
Low noise level
The M2QA range has been designed to minimize motors noise levels by means of improving magnetic and electrical design, ventilating condition, structural assembling size and technology.
Reliable windings
To ensure long lifetime, the windings are made of the latest available materials in class F protection and temperature rise limited to class B (80K) in standard motors.
Strong corrosion protection
The motors are made to withstand aggressive environment as standard and they are designed for long lifetime. For motors with regreasable elements, they have strong and effective protection against corrosion.
Additional winding protection
PTC thermistors, thermal switches and anticondensation on request
機械設計
全封閉自扇冷設計,IP55防護等級
重負載設計,同時采用強抗腐蝕鑄鐵材料,使M2QA系列電動機可調節各種環境。電動機的機械結構極其堅固,標準設計采用變頻驅動器,額外節能。
靈活的進線方式
接線盒可安裝在所有規格的電動機頂部、右側或左側,易于改裝。
·71 - 132電動機接線盒可旋轉4×90°
·160 - 355電動機接線盒可旋轉2×180°,所有規格的電動機都易于改裝。
強大的改裝能力
電動機針對不同環境及應用有多種配置可選,如更高的防護等級、絕緣等級、重新潤滑裝置、防塵保護、密封圈、防護罩等等。
Mechanical Design
Totally enclosed fan cooled IP55
Heavy duty design, manufactured from extra corrosion resistant cast iron materials to be used in all kind of environment. The motor is mechanically very strong and robust and as standard designed for additional energy saving through frequency converter drives.
Flexible cable entry direction
Terminal boxes are mounted on the top of the motors, right or left. Terminal boxes of motor size 71 - 132 can rotate 4×90°, and those of 160 - 355 can rotate2×180°. All are easy to refit.
Powerful refit available
The motors satisfy the requirements of a wide range of environments and applications, such as improving protection, insulation level, regreasing facilities, dustproof, sealing rings, protective roof are available.
愛澤工業(IZE INDUSTRIES)特價經銷、常用ABB電機M2QA系列型號:
IZE_industries specializes in sales of ABB motors, including ABB Low-voltage motors, ABB synchronous motors, ABB generators and more:
ABB MOTOR M2QA71M2A
ABB MOTOR M2QA71M2B
ABB MOTOR M2QA80M2A
ABB MOTOR M2QA80M2B
ABB MOTOR M2QA90S2A
ABB MOTOR M2QA90L2A
ABB MOTOR M2QA100L2A
ABB MOTOR M2QA112M2A
ABB MOTOR M2QA132S2A
ABB MOTOR M2QA132S2B
ABB MOTOR M2QA160M2A
ABB MOTOR M2QA160M2B
ABB MOTOR M2QA160L2A
ABB MOTOR M2QA180M2A
ABB MOTOR M2QA200L2A
ABB MOTOR M2QA200L2B
ABB MOTOR M2QA225M2A
ABB MOTOR M2QA250M2A
ABB MOTOR M2QA280S2A
ABB MOTOR M2QA280M2A
ABB MOTOR M2QA315S2A
ABB MOTOR M2QA315M2A
ABB MOTOR M2QA315L2A
ABB MOTOR M2QA315L2B
ABB MOTOR M2QA355M2A
ABB MOTOR M2QA355L2A
ABB MOTOR M2QA71M4A
ABB MOTOR M2QA71M4B
ABB MOTOR M2QA80M4A
ABB MOTOR M2QA80M4B
ABB MOTOR M2QA90S4A
ABB MOTOR M2QA90L4A
ABB MOTOR M2QA100L4A
ABB MOTOR M2QA100L4B
ABB MOTOR M2QA112M4A
ABB MOTOR M2QA132S4A
ABB MOTOR M2QA132M4A
ABB MOTOR M2QA160M4A
ABB MOTOR M2QA160L4A
ABB MOTOR M2QA180M4A
ABB MOTOR M2QA180L4A
ABB MOTOR M2QA200L4A
ABB MOTOR M2QA225S4A
ABB MOTOR M2QA225M4A
ABB MOTOR M2QA250M4A
ABB MOTOR M2QA280S4A
ABB MOTOR M2QA280M4A
ABB MOTOR M2QA315S4A
ABB MOTOR M2QA315M4A
ABB MOTOR M2QA315L4A
ABB MOTOR M2QA315L4B
ABB MOTOR M2QA355M4A
ABB MOTOR M2QA355L4A
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的首選渠道。
Who we are
IZE_industries was established in 2010.With its many years of professional experience, providing advanced manufacturing industries technology and equipment. Including advanced electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we also provide our customers with consulting solutions, market knowledge, and value-added services.
IZE offers everyone its profitable service.
What we offer
Engineering and Consulting
Full-service controls engineering and consulting solutions for industrial
manufacturing equipment, including:
Electrical design
PLC programming
Robot programming
Process optimization
Down-time consultation
spare parts from the areas, including:
Hydraulic
Pneumatic
Industrial
Automation technology.
如果有任何關于ABB MOTOR M2QA/M2BA系列 示例M2QA71M2A的疑問,請隨時與我們聯系,(021-3100 6702),我們將盡全力解決您的問題。
有關ABB MOTOR M2QA/M2BA系列 示例M2QA71M2A更詳細的信息或者購買ABB相關產品,請聯系愛澤工業。
If you have any question for M2QA/M2BA series, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
