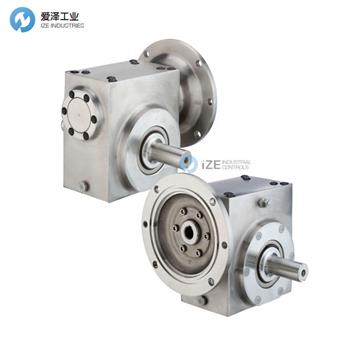

IRONMAN減速機S153006400技術參數
Max Input HP @1750 | 1 |
Output RPM @1750 | 117 |
Reduction Ratio | 15 |
Torque (lb-in)@1750rpm | 446 |
Shaft Center Distance | 1.54 |
Shaft Center Height | 1.91 |
Mount Footprint | 2.75” x 4.19” |
NEMA Input Mounting | 56C |
Mount Style | BMQ |
Series Size | 815 |
Series | GR |
Output Config | Dual Shaft |
Output Shaft Dia" | 0.75 |
Application | Stainless Washdown |
Weight | 21 lbs |
IRONMAN減速機15系列介紹
? 拋光 316 不銹鋼外殼、法蘭和蓋可承受極端環境
? 圓形蓋和法蘭可防止碎屑堆積并提高沖洗性能
? 兩種安裝模式,可輕松互換至標準蝸輪減速機占地面積
? 輸入法蘭面上的 O 形圈可提供可靠的密封,防止?jié)駳馇秩?/p>
? 303不銹鋼輸出軸
? 不銹鋼硬件,包括方頭管塞,可消除通風位置的滯留
? 輸出蓋上的 O 形圈密封消除了墊圈、密封劑和泄漏
? 食品級合成潤滑劑,USDA H1 級
? 蝕刻外殼可防止傳統銘牌造成的卡住
? 塑料螺絲和孔蓋可防止卡住
? Polished, 316 stainless steel housing, flange and cover to withstand extreme environments
? Rounded cover and flange to prevent debris accumulation and improve washdown performance
? Two mounting patterns for easy interchangeability to standard worm gear reducer footprints
? O-ring on face of input flange provides a positive seal against moisture intrusion
? 303 stainless steel output shaft
? Stainless steel hardware, including square-head pipe plugs to eliminate entrapment in vent locations
? O-ring seal on the output cover eliminate gaskets, sealants and leaks
? Food grade synthetic lubricant, USDA class H1
? Etched housing stops entrapment caused by traditional nameplates
? Plastic screw and hole covers prevent entrapment
IRONMAN減速機15系列其他常用型號:
IRONMAN S153006100
IRONMAN S153009700
IRONMAN S153006200
IRONMAN S153009800
IRONMAN S153006300
IRONMAN S153009900
IRONMAN S153006400
IRONMAN S153010000
IRONMAN S153006500
IRONMAN S153010100
IRONMAN S153006600
IRONMAN S153010200
IRONMAN S153006700
IRONMAN S153010300
IRONMAN REDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
