IQVALVES控制閥IQ PFCV系列參數特性
Function: | 2 Way Normally Closed |
Orifice Size Range: | .234” to .650” |
Hysterisis: | < 10% |
Time Response: | < 35 msec |
Pressure Range: | 0 - 135 PS |
Seal Material: | Nitrile, FKM |
Temperature Range: | Nitrile:-40 to 250o F |
Wetted Material: | Al & 300 Series SS |
Fluid: | Gases & Liquids |
Voltage Range: | 6 to 24 volts |
Lead Wires: | 22 AWG 12” long |
Weight – Al Base: | 22 – 27 Oz. |
IQVALVES控制閥IQ PFCV系列產品介紹
iQ Valve’s new breed of patented, solenoid operated, proportional flow control valves are unparalleled in the valve industry. Our PFCV (Proportional Flow Control Valve) line outperforms the other types of proportional valves through unique design innovations.
iQ Valve’s proportional valves have no rubbing contact surfaces which gives them low hysteresis, high frequency response, quick time response (less than 35 msec.) and long life. Since no sliding friction is encountered, the electrical drive circuit can be as simple as a straight DC electrical signal; however, a pulse-width-modulated signal can also be used. These single-stages, 2-way poppet valves will perform well even at low pressure drops.
Our patented pressure balanced designs allow us to create flow control valves that can operate, even when pressure is fluctuating. The poppet construction eliminates leakage within the working pressure ranges. The working fluid is isolated from the coil and other parts of the solenoid by an isolation diaphragm; thus, the fluid path is limited exclusively to the poppet area and the inletand outlet paths. This feature makes these valves suitable for both gases and liquids.
iQ Valve 的新型專利電磁操作比例流量控制閥在閥門行業中是優質的。PFCV（比例流量控制閥）系列通過獨特的設計創新優于其他類型的比例閥。
iQ Valve 的比例閥沒有摩擦接觸面，因此具有低滯后、高頻率響應、快速響應（小于 35 毫秒）和長壽命。由于沒有遇到滑動摩擦，電氣驅動電路可以像直接直流電信號一樣簡單；然而，也可以使用脈寬調制信號。這些單級 2 通提升閥即使在低壓降下也能表現良好。
獲得的壓力平衡設計使我們能夠制造出即使在壓力波動時也能運行的流量控制閥。提升閥結構消除了工作壓力范圍內的泄漏。工作流體通過隔離膜片與線圈和螺線管的其他部分隔離；因此，流體路徑僅限于提升閥區域以及入口和出口路徑。這一特點使這些閥門適用于氣體和液體。
IQVALVES閥其他常用型號：
IQVALVES 700051
IQVALVES 700046
IQVALVES 700047
IQVALVES 700048
IQVALVES 700043
IQVALVES 700044
IQVALVES 700045
IQVALVES Valve components NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IQVALVES閥700047的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for IQVALVES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

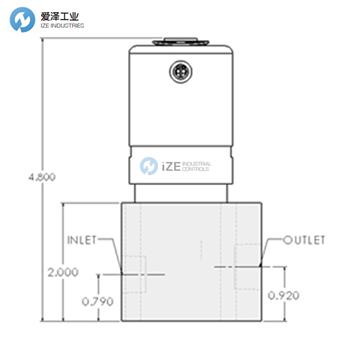

IQVALVES閥IQ PFCV系列700047參數介紹
