HYDAC過濾器LF系列規格描述
FILTER SPECIFICATIONS | |
Nominal pressure | 100 bar |
Fatigue strength | At nominal pressure 106 cycles from 0 to nominal pressure (For other pressures, see Point 1.8) |
Temperature range | -30 °C to +100 °C |
Material of filter head | Aluminium |
Material of filter bowl | Aluminium |
Type of clogging indicator | VM (differential pressure measurement up to 210 bar operating pressure) |
Pressure setting of the clogging indicator | 5 bar (others on request) |
Bypass cracking pressure (optional) | 6 bar (others on request) |

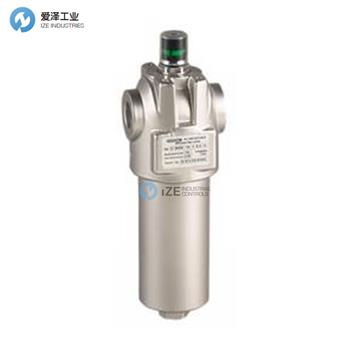

HYDAC過濾器LF系列介紹
LF
Inline filter
Flow rates up to 500 l/min
Pressure levels up to 100 bar
Connections: G? to G1?
Installation sizes: 30, 60, 110, 160, 240, 330, 660
LF
在線過濾器
流速高達 500 l/min
壓力水平高達 100 bar
連接：G? 到 G1?
安裝尺寸：30、60、110、160、240、330、660
HYDAC過濾器LF系列其他常用型號：
HYDAC LF60ICX A1.0 /-B6
HYDAC LF 110 I C XX A
HYDAC LF 110 I C XX A 1.0 /-B6
HYDAC LF 160 I E XX A 1.0 /-QPD
HYDAC LF 160 I E XX A 1.0 /-B3-QPD
HYDAC LF 160 I E XX A 1.0 /-B6-QPD
HYDAC LF 160 SET XX W 1.0 /-QPD
HYDAC LF 240 I E XX A 1.0 /-QPD
HYDAC LF 240 I E XX A 1.0 /-B3-QPD
HYDAC LF 240 I E XX A 1.0 /-B6-QPD
HYDAC LF 240 SET XX W 1.0 /-QPD
HYDAC LF 30 I B XX A 1.0
HYDAC LF 30 I B XX A 1.0 /-B6
HYDAC LF 330 I F XX A 1.0 /-B6-QPD
HYDAC LF 330 I F XX A 1.0 /-QPD
HYDAC LF 330 SET XX W 1.0 /-QPD
HYDAC LF 60 I C XX A 1.0
HYDAC LF 60 I C XX A 1.0 /-B6
HYDAC LF 660 I F XX A 1.0 /-B6-QPD
HYDAC LF 660 I F XX A 1.0 /-QPD
HYDAC LF 660 SET XX W 1.0 /-QPD
HYDAC filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC過濾器LF60ICX A1.0 /-B6的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
