HYDAC過濾器OLF-5系列規格描述
OLF = OffLine filter |
5/4 = 5 l/min (for lubrication systems) |
S = standard with motor (OLF-5, OLF-5/4, OLF-5/15) |
370-N = 370 W, 3x400 V 50 Hz |
N 5 AM 002 = AQUAMICRON filtration rating 2 μm absolute |
C = electrical differential pressure indicator (VM2C.0) |
HYDAC過濾器OLF-5系列介紹

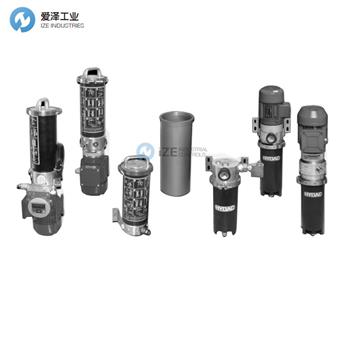

OLF 5 (FILTER)
The compact and stationary fluid conditioning units of the OLF 5 are used for the fine filtration of hydraulic and lubrication oils in bypass flow. Versions are also available with motor-pump unit. The Toploader version is distinguished by the "upward" dismantling of elements (tool-free element replacement). The Dimicron elements used exhibit the following properties:
particularly high contamination absorption capability
Environment-friendly disposal (ashability) and
water retention (optional: Aquamicron)
The OLF 5 is used on machine tools, plastic injection machines, mobile devices and in wind power.
Flow rate Hydraulic Line: max. 15 l/min
Flow rate Lubrication Line: max. 4 l/min
Operating pressure Hydraulic Line: max. 4.5 bar
operating pressure Lubrication Line: max. 3.5 bar
Improvement of component and filter service life
Greater machine availability
Longer oil change intervals
Lower space requirements through compact construction
High service-friendliness
High contamination retention capacity of the elements
Environment-friendly element disposal through ashability
OLF 5(過濾器)
OLF 5 的緊湊型固定式流體調節裝置用于對旁通流中的液壓油和潤滑油進行精細過濾。還提供帶有電動泵單元的版本。 Toploader 版本的特點是“向上”拆卸元件(免工具更換元件)。使用的 Dimicron 元件具有以下特性:
特別高的污染吸收能力
環保處置(灰化性)和
保水性(可選:Aquamicron)
OLF 5 用于機床、注塑機、移動設備和風力發電。
流量液壓管路:最大。 15升/分鐘
流量潤滑線:最大。 4升/分鐘
工作壓力液壓管路:最大。 4.5 巴
工作壓力潤滑管路:最大。 3.5 巴
提高組件和過濾器的使用壽命
更高的機器可用性
更長的換油周期
通過緊湊的結構降低空間要求
高服務友好性
元素的高污染保留能力
通過可灰化處理環保元素
HYDAC過濾器OLF-5系列其他常用型號:
HYDAC OLF-5/4-S-370-N-N5AM002-C
HYDAC 3066061 OLF 54 S 370 N N5AM002 C DE SDE AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C EN SEN AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C EN SEN AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C EN SEN AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C EN SEN AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C EN SEN AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C ES SES AIN V1
HYDAC 3066061 OLF 54 S 370 N N5AM002 C FR SFR AIN V1
HYDAC filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體,代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC過濾器OLF-5/4-S-370-N-N5AM002-C的疑問,請隨時致電我們,愛澤工業(86-021-31006702)。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
