AVENTICS換向閥581系列技術參數
Type | Spool valve |
Sealing principle | Soft sealing |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Standards | ISO 5599-1, ISO 1 |
Control pressure min./max. | 1,5 ... 16 bar |
Ambient temperature min./max. | -15 ... 50 °C |
Medium temperature min./max. | -15 ... 50 °C |
Medium | Compressed air |
Max. particle size | 50 μm |
Oil content of compressed air | 0 ... 5 mg/m3 |
Nominal flow Qn | 1400 l/min |
Flow conductance C | 5,2 l/(s*bar) |
Protection class with connection | IP65 |
Duty cycle | 1 |
Typ. switch-on time | 13 ms |
Typ. switch-off time | 13 ms |
Mounting screw | with hexagon socket |
Mounting screw tightening torque | 2 Nm |
Weight | 0,5 kg |
AVENTICS換向閥581系列介紹
5/2 換向閥,581 系列,size 1
- ISO 5599-1
- ISO 1
- 5/2
- 雙電磁鐵
- Qn = 1400 升/分鐘
- 壓縮空氣連接輸出 底板 ISO 5599-1
- 電氣連接插頭,EN 175301-803,A 型
- 手動超控,無制動裝置

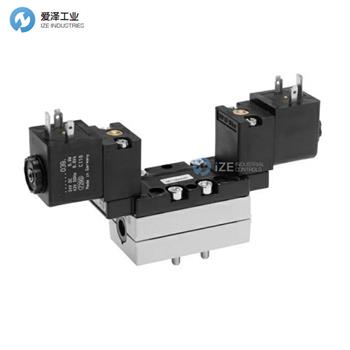

5/2-directional valve, Series 581, size 1
- ISO 5599-1
- ISO 1
- 5/2
- double solenoid
- Qn = 1400 l/min
- Compressed air connection output Base plate ISO 5599-1
- Electrical connection Plug, EN 175301-803, form A
- Manual override without detent
AVENTICS換向閥581系列其他常用型號:
AVENTICS 5811290540
AVENTICS 5811290440
AVENTICS 5811291540
AVENTICS 5811291440
AVENTICS 5811292540
AVENTICS 5811292440
AVENTICS 5811293540
AVENTICS 5811293440
