OLMEC液壓泵P801-16產品參數
TECHNICAL DATA | |
Model | P801-16 |
Pressure ratio | 1 : 16 |
Maximum nominal pressure | 112 |
Air pressure | 2 ÷ 7 bar |
Air consumption | 300 Nl/min |
Noise level | Noise measured at 1 meter 78 ÷ 80 dB |
Standard pump weight | 3,6 Kg |
Pump weight with tank | Lt 1,2 = 6 // Lt 3 = 7,5 // Lt 6 = 10 // Lt 10 = 11,5 Kg |
OLMEC液壓泵介紹

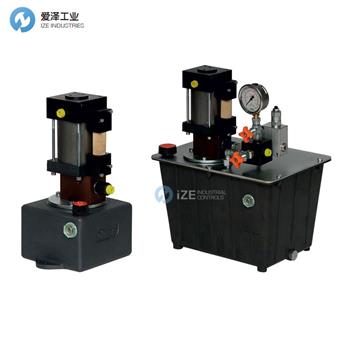

A compact pump with minimal space requirement, operating on compressed air with pressures from 2 to 7 bar, is widely used in the supply of systems where high oil delivery rates are not required.
Constructed with 6 intensification ratios, it is able to achieve pressures up to 455 bar and delivery rates up to 9.5 litres/min.
It can be mounted vertically or horizontally on walls with the aid of special brackets, or anged straight onto tanks of various capacities.
In installations with separate tanks, the difference in level between pump and tank should be minimal in order to avoid priming problems.
CHARACTERISTICS
HYDRAULIC PRESSURE: 10 - 455 BAR
OIL AND WATER WORKING APPLICATION
VERSIONS SUITABLE FOR AGRASSIVE AND CORROSIVE AGENTS
HORIZONTAL OR VERTICAL MOUNTING
COMPACT DIMENSIONS
緊湊型泵具有最小的空間要求，使用壓力為 2 至 7 bar 的壓縮空氣運行，廣泛用于不需要高輸油率的系統供應。
它采用 6 種增壓比構造，能夠?qū)崿F(xiàn)高達 455 bar 的壓力和高達 9.5 升/分鐘的輸送速度。
它可以借助特殊支架垂直或水平安裝在墻壁上，或直接安裝在各種容量的罐上。
在帶有獨立水箱的安裝中，泵和水箱之間的液位差應該很小，以避免啟動問題。
特征
液壓壓力：10 - 455 巴
油水作業應用
適用于腐蝕性和腐蝕劑的版本
水平或垂直安裝
緊湊的尺寸
OLMEC液壓泵P801系列其他常見型號：
OLMEC P801-5
OLMEC P801-8
OLMEC P801-16
OLMEC P801-30
OLMEC P801-42
OLMEC P801-65
