BUSAK+SHAMBAN導向帶GR系列產品參數
Technical Data | |
Velocity, reciprocating: | Max. 2.0 m/s |
Temperature: | -60 °C to +80 °C (100 °C) |
Radial Slydring? pressure Pr: | Max. 25 N/mm2 at 25 °C |
BUSAK+SHAMBAN導向帶GR系列介紹
Description

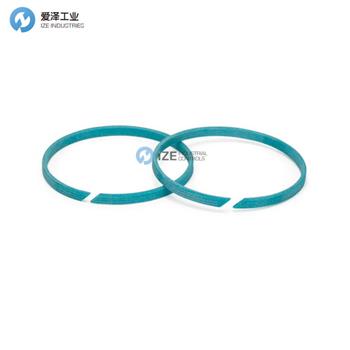

The Turcite Slydring is used as piston and rod guides due to their outstanding friction behavior, stick-slip free running and good resistance to high temperatures and chemicals.
The Slydring has a geometrically rectangular cross-section and are chamfered at the edges for easy installation into the grooves.
Slydrings up to and including 4 mm radial thickness in Turcite materials are as standard supplied with “teardrop” structure on the sliding surfaces. This structure comprises small lubricant pockets on the surface which improve the initial lubrication and promote the formation of a lubricant film. They also help to protect the seal system through their ability to embed any foreign particles. In order to be able to use the strip material for both piston and piston rod guides, the rings have this same teardrop structure on both sides.
描述
Turcite Slydring 因其摩擦性能、無粘滑運行以及良好的耐高溫和耐化學性而被用作活塞和桿導向裝置。
Slydring 具有幾何矩形橫截面，邊緣倒角，便于安裝到凹槽中。
采用 Turcite 材料制成的 Slydrings 徑向厚度達 4 毫米（包括在內）作為標準提供，在滑動表面上具有“滾珠”結構。 這種結構包括表面上的小潤滑劑，可改善初始潤滑并促進潤滑劑膜的形成。 它們還通過嵌入任何外來顆粒的能力來幫助保護密封系統。 為了能夠?qū)l形材料用于活塞和活塞桿導向件，環在兩側具有相同的滾珠結構。
BUSAK+SHAMBAN導向帶GR系列其他常見型號：
BUSAK+SHAMBAN GR6500500
BUSAK+SHAMBAN GR6500450
BUSAK+SHAMBAN GR6500520
BUSAK+SHAMBAN GR6500580
BUSAK+SHAMBAN GR6500650
BUSAK+SHAMBAN GR6500750
BUSAK+SHAMBAN GR6501200
BUSAK+SHAMBAN GR6501000
BUSAK+SHAMBAN Guide ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN導向帶GR6501250-C380的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: http://jjxdch.cn/ .
BUSAK+SHAMBAN導向帶GR6501250-C380產品參數
