B+S V型密封TWVL02000-N6T50產品參數

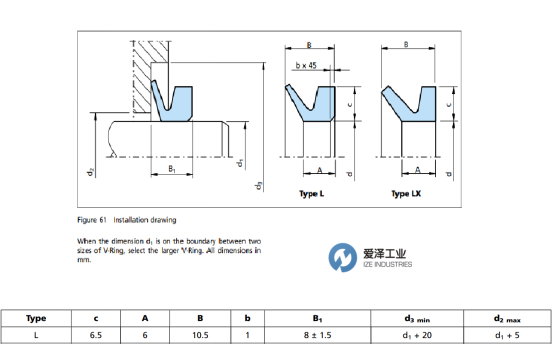

PARTNO Part-No. | TWVL02000 | |
D1 Shaft diameter | 195 | mm |
D1X Shaft diameter | 195-210 | mm |
D Inside diameter | 182 | mm |
NUT Groove | Without groove | |
MC Seal ring material | N6T50 | |
C Height of crosssection | 6.5 | mm |
A Dimensions | 6 | mm |
B Free width | 10.5 | mm |
D2 max. Diameter | 200.000 | mm |
D3 min. Diameter | 215.000 | mm |
B1 Fitted width | 8 | mm |
B+S V型密封L系列
B+S（BUSAK+SHAMBAN）V型密封TWVL02000-N6T50產品介紹
V型密封是一種獨特的旋轉軸全橡膠V型密封。
Forsheda AB于20世紀60年代開發，現已成功應用于原始設備制造商和全球替代市場。
V型環是一種完美的V型密封，可防止污垢、灰塵、水或這些介質的組合進入，同時有效地保持潤滑脂。由于其獨特的設計和性能，V型環可用于廣泛的軸承類型。它也可用作二次V型密封，以保護在惡劣環境中表現不佳的一次V型密封。
The V-RING is a unique all-rubber seal for rotary shafts.
Developed in the 1960’s by FORSHEDA AB, it has been used successfully by OEMs and on the replacement market world wide in a broad range of applications.
The V—Ring is the perfect seal to prevent the ingress of dirt,dust, water or combinations of these media while positively retaining grease. With its unique design and performance the V—Ring can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
B+S V型密封TWVL02000-N6T50
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件B+S V型密封部分型號：
B+S TWVL01100-N6T50
B+S TWVL01200-N6T50
B+S TWVL01300-N6T50
B+S TWVL01400-N6T50
B+S TWVL01500-N6T50
B+S TWVL01600-N6T50
B+S TWVL01700-N6T50
B+S TWVL01800-N6T50
B+S TWVL01900-N6T50
B+S TWVL02000-N6T50
B+S TWVL02200-N6T50
B+S TWVL02500-N6T50
B+S TWVL02750-N6T50
B+S TWVL03000-N6T50
B+S TWVL03250-N6T50
B+S TWVL03500-N6T50
B+S TWVL03750-N6T50
B+S TWVL04000-N6T50
B+S TWVLV4250-N6T50
B+S TWVL04500-N6T50
B+S TWVLV5000-N6T50
B+S TWVLV5250-N6T50
B+S TWVLV5500-N6T50
B+S TWVLV6000-N6T50
B+S TWVLV6500-N6T50
B+S TWVLV7000-N6T50
B+S TWVLV7250-N6T50
B+S TWVLV7500-N6T50
B+S TWVL08000-N6T50
B+S TWVLV8500-N6T50
B+S TWVLV9000-N6T50
B+S TWVLW1000-N6T50
B+S TWVLW1050-N6T50
B+S TWVLW1100-N6T50
B+S TWVLW1150-N6T50
B+S TWVLW1200-N6T50
B+S TWVLW1250-N6T50
B+S TWVLW1300-N6T50
B+S TWVLW1350-N6T50
B+S TWVLW1400-N6T50
B+S TWVLW1450-N6T50
B+S TWVLW1500-N6T50
B+S TWVLW1550-N6T50
B+S TWVLW1600-N6T50
B+S TWVLW1650-N6T50
B+S TWVLW1700-N6T50
B+S TWVLW1750-N6T50
B+S TWVLW1800-N6T50
B+S TWVLW1850-N6T50
B+S TWVLW1900-N6T50
B+S TWVLW1950-N6T50
B+S TWVLW2000-N6T50
B+S seal NEW + ORIGINAL+ ONE YEAR WARRANT
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于B+S（BUSAK+SHAMBAN）V型密封L系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for B+S products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
B+S（BUSAK+SHAMBAN）V型密封L系列TWVL02000-N6T50技術參數
