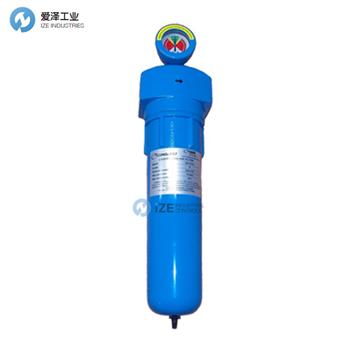

CAPS過濾器CE177U是原G95U（已停產）的替代型號
CAPS過濾器CE177U技術參數
SPECIFICATIONS | |
Inlet/Outlet Connections | 1-1/2" |
Capacity (m3/min) | 10.62 |
Operating Pressure (bar) | 5-16 |
Max. Pressure (bar) | 16 |
Particulate (micron) | 1 |
Oil (mg/m3) | 0.1 |
Dimensions Lxlxh (mm) | 457x139x139 |
Weight (kgs) | 4.6 |
CAPS過濾器CE系列介紹
CAPS CE系列過濾器可清潔您的壓縮空氣并防止非常小的污染物通過您的壓縮機的進氣過濾器，進入產線，從而導致氣動設備頻繁停機或?qū)ψ罱K產品的質量產生不利影響。
CAPS CE177U的通信尺寸為1 1/2”，在7 BarG下的容量為10.62 m3/min。U級允許去除0.1mg/m3的油、1微米的顆粒和0.05BarG的標稱初始壓降。
最大推薦工作溫度 = 80°C
最低推薦工作溫度 = 1°C
更換濾芯時的最大推薦壓差為 0.6 bar
鋁制外殼
過濾器配有壓差計
The CAPS CE series filters clean your compressed air and protect from very small contaminants passing through your compressor’s intake filter and find their way to process line to either cause frequent expensive downtime of your pneumatic equipment or adversely affect the quality of your end products.
The CAPS CE177U has a 1 1/2” comm size and a capacity of 10.62 m3/min at 7 BarG. The U grade allows the oil removal of 0.1mg/m3, 1 micron of particles and a nominal initial pressure drop of 0.05BarG.
Maximum recommended operating temperature = 80°C
Minimum recommended operating temperature = 1°C
Maximum recommended pressure differential for element change is 0.6 bar
Aluminium housing
Filters come complete with differential pressure gauge included
CAPS過濾器CE系列其他常用型號：
CAPS CE012
CAPS CE018
CAPS CE025
CAPS CE041
CAPS CE062
CAPS CE112
CAPS CE177
CAPS CE233
CAPS CE343
CAPS CE514
CAPS filter NEW + ORIGINAL+ ONE YEAR WARRANTY
