TESCOM?44-1300系列調壓閥(例如TESCOM調壓閥44-1315-2122-005):
TESCOM44-1300系列是一種高壓,高流量減壓調節器,提供排氣和平衡閥設計。
44-1300系列提供Cv=0.8和Cv=2.0的流通能力。
提供圓頂和空氣負載選項。適用于商業潛水,呼吸空氣,特殊氣體混合調節硬套裝潛水和高壓管拖尾氣體的減少。

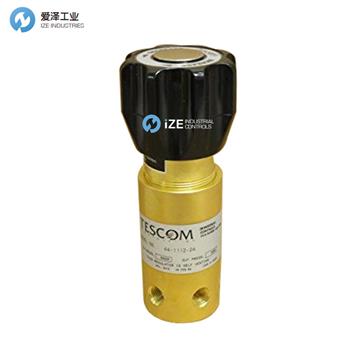

TESCOM? 44-1300 Series Pressure Regulator Valve
44-1300 Series is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. The 44-1300 Series provides Cv = 0.8 and 2.0. Dome and air load options are available. Ideal for use in commercial diving - breathing air, special gas mix regulation hard suit diving and high pressure tube trailer gas reduction.
CHECK ORDER STATUS
TESCOM?44-1300系列調壓閥規格:
Maximum Inlet Pressure:
Stainless Steel Body: 4500 psig / 310 bar, 6000 psig / 414 bar available
Brass Body: 3750 psig / 260 bar, 5000 psig / 345 bar available
Outlet Pressure Ranges: 0-300, 0-600, 0-1000 and 0-1500 psig / 0-20.7, 0-41.4, 0-69.0 and 0-103 bar .0-2500 psig / 0-172 bar available
Body Material: Brass, 303 or 316 Stainless Steel
Seat Material Main Valve: CTFE (Except: 44-13X2-XXX2, Teflon?)
Vent Valve:
Teflon?: 300 and 600 psig / 20.7 and 41.4 bar outlet
CTFE: 1000 and 1500 psig / 69.0 and 103 bar outlet
O-Rings Viton-A?
Back-up Rings Teflon?
Gaskets CTFE
Remaining Parts 300 Series Stainless Steel, 17-4, 17-7 Stainless Steel, Teflon? and Brass
Port Size & Type 1/2", 3/4"SAE, NPTF, MS33649, BSPP 1/2", 1" Flange
Operating Temperature -15°F to 220°F / -26°C to 104°C
Flow Capacity 1/4" Main Valve: Cv = 0.8
3/8" Main Valve: Cv = 2.0
Load Type Spring, Dome, Air
Weight (without gauges) 6.25 lbs / 2.8 kg
Additional Information For custom modifications or a complete system solution, please contact izeindustries (0086-21-31006702).
美國TESCOM調壓閥44-1315-2122-005
愛澤工業(IZE_INDUSTRIES)特價經銷、常用備件型號:
TESCOM調壓閥44-2213-241
TESCOM調壓閥44-2212-242
TESCOM調壓閥44-2212-241V
TESCOM調壓閥44-2211-242-079
TESCOM調壓閥44-2211-241-1084
TESCOM調壓閥44-2210-241-1084
TESCOM調壓閥44-2210-241
TESCOM調壓閥44-1862-24V
TESCOM調壓閥44-1862-24
TESCOM調壓閥44-186124XXX
TESCOM調壓閥44-1861-24V-142
TESCOM調壓閥44-1861-24V
TESCOM調壓閥44-1861-24-143
TESCOM調壓閥44-1861-24
TESCOM調壓閥44-1822-24V
TESCOM調壓閥44-1822-24
TESCOM調壓閥44-1821-24
TESCOM調壓閥44-1813-24-156
TESCOM調壓閥44-1813-24-099
TESCOM調壓閥44-1812-24V
TESCOM調壓閥44-1812-24
TESCOM調壓閥44-1811-24V-142
TESCOM調壓閥44-1811-24V
TESCOM調壓閥44-1811-24-142
TESCOM調壓閥44-1768-24
TESCOM調壓閥44-1765-28-245
TESCOM調壓閥44-1765-24-006
TESCOM調壓閥44-1717-24
TESCOM調壓閥44-1566Z26A370
TESCOM調壓閥44-1566V28A380
TESCOM調壓閥44-1566T28A370
TESCOM調壓閥44-1566T26A380
TESCOM調壓閥44-1566D28A371
TESCOM調壓閥44-1562D28S370
TESCOM調壓閥44-1525-2122
TESCOM調壓閥44-1516T26A270
TESCOM調壓閥44-1516D28D272
TESCOM調壓閥44-1512T28S373
TESCOM調壓閥44-1512D26W272
TESCOM調壓閥44-1366-2082-011
TESCOM調壓閥44-1363-2122-019
TESCOM調壓閥44-1362-3122
TESCOM調壓閥44-1362-2081-005
TESCOM調壓閥44-1327-3122-451
TESCOM調壓閥44-1327-2082-064
TESCOM調壓閥44-1327-2082-056
TESCOM調壓閥44-1326-3122
TESCOM調壓閥44-1326-2122
TESCOM調壓閥44-1326-2082-005
TESCOM調壓閥44-1326-2082-002
TESCOM調壓閥44-1326-2081-019
TESCOM調壓閥44-1326-208-2
TESCOM調壓閥44-1325-2122
TESCOM調壓閥44-1325-2121A002
TESCOM調壓閥44-1325-2082
TESCOM調壓閥44-1325-2081-019
TESCOM調壓閥44-1325-2081-011
TESCOM調壓閥44-1325-2081-002
TESCOM調壓閥44-1325-2081
TESCOM調壓閥44-1323-2081-019
TESCOM調壓閥44-1323-2081
TESCOM調壓閥44-1322-2122-019
TESCOM調壓閥44-1322-2122-002
TESCOM調壓閥44-1322-2121-005
TESCOM調壓閥44-1322-2082-1322
TESCOM調壓閥44-1322-2082-002
TESCOM調壓閥44-1322-2081-019
TESCOM調壓閥44-1322-2081
TESCOM調壓閥44-1317-2082-300
TESCOM調壓閥44-1317-2082-056
TESCOM調壓閥44-1316-2122-120
TESCOM調壓閥44-1316-2122-019
TESCOM調壓閥44-1316-2122-005
TESCOM調壓閥44-1316-2122
TESCOM調壓閥44-1316-2082A002
TESCOM調壓閥44-1316-2082-019
TESCOM調壓閥44-1316-2082-011
TESCOM調壓閥44-1316-2082-005
TESCOM調壓閥44-1316-2082-002
TESCOM調壓閥44-1316-2082
TESCOM調壓閥44-1316-2081-019
TESCOM調壓閥44-1316-2081-005
TESCOM調壓閥44-1316-2081-002
TESCOM調壓閥44-1316-2081
TESCOM調壓閥44-1316-1122A274
TESCOM調壓閥44-1316-1122-005
TESCOM調壓閥44-1316-1081-002
TESCOM調壓閥44-1315-2122-403
TESCOM調壓閥44-1315-2122-005
TESCOM調壓閥44-1315-2122-002
TESCOM調壓閥44-1315-2122
TESCOM調壓閥44-1315-2082-005
TESCOM調壓閥44-1315-2082-002
TESCOM調壓閥44-1315-2082
TESCOM調壓閥44-1315-2081-042
TESCOM調壓閥44-1315-2081-019
TESCOM調壓閥44-1315-2081-005
TESCOM調壓閥44-1315-2081
TESCOM調壓閥44-1313-2162-339
TESCOM調壓閥44-1313-2122-369
TESCOM調壓閥44-1313-2122-295
TESCOM調壓閥44-1313-2122-019
TESCOM調壓閥44-1313-2122-005
TESCOM調壓閥44-1313-2122
TESCOM調壓閥44-1313-2082-005
TESCOM調壓閥44-1313-2082-002
TESCOM調壓閥44-1313-2081-028
TESCOM調壓閥44-1313-2081-011
TESCOM調壓閥44-1313-2081-005
TESCOM調壓閥44-1312-9122-298
TESCOM調壓閥44-1312-2162-339
TESCOM調壓閥44-1312-2122-019
TESCOM調壓閥44-1312-2122-005
TESCOM調壓閥44-1312-2122-002
TESCOM調壓閥44-1312-2122
TESCOM調壓閥44-1312-2082A002
TESCOM調壓閥44-1312-2082-270
TESCOM調壓閥44-1312-2082-019
TESCOM調壓閥44-1312-2082-005
TESCOM調壓閥44-1312-2082
TESCOM調壓閥44-1312-2081
TESCOM調壓閥44-1312-1081
TESCOM調壓閥44-1166-24-001
TESCOM調壓閥44-1166-24
TESCOM調壓閥44-1165-24
TESCOM調壓閥44-1164-24-093
TESCOM調壓閥44-1164-24
TESCOM調壓閥44-1163-24-109A
TESCOM調壓閥44-1163-24
TESCOM調壓閥44-1162-24
TESCOM調壓閥44-1161-24-001
TESCOM調壓閥44-1161-24
TESCOM調壓閥44-1126-29-155
TESCOM調壓閥44-1126-24-093
TESCOM調壓閥44-1126-24-013
TESCOM調壓閥44-1126-24-001
TESCOM調壓閥44-1126-24
TESCOM調壓閥44-1125-24-131
TESCOM調壓閥44-1125-24
TESCOM調壓閥44-1124-24-002
TESCOM調壓閥44-1124-24
TESCOM調壓閥44-1123-24-009
TESCOM調壓閥44-1123-24
TESCOM調壓閥44-1122-24-131
TESCOM調壓閥44-1122-24-001
TESCOM調壓閥44-1122-24
TESCOM調壓閥44-1121-24-001
TESCOM調壓閥44-1121-24
TESCOM調壓閥44-1116-24-259
TESCOM調壓閥44-1116-24-210
TESCOM調壓閥44-1116-24-009
TESCOM調壓閥44-1116-24
TESCOM調壓閥44-1115-24-219
TESCOM調壓閥44-1115-24-001
TESCOM調壓閥44-1115-24
TESCOM調壓閥44-1114-24-352
TESCOM調壓閥44-1114-24-218
TESCOM調壓閥44-1114-24-005
TESCOM調壓閥44-1114-24-001
TESCOM調壓閥44-1114-24
TESCOM調壓閥44-1113-24-009
TESCOM調壓閥44-1113-24-001
TESCOM調壓閥44-1113-24
TESCOM調壓閥44-1112-24-001
TESCOM調壓閥44-1112-24
TESCOM調壓閥44-1111-24-150
TESCOM調壓閥44-1111-24-001
TESCOM調壓閥44-1111-24
愛澤工業專業銷售美國TESCOM調壓閥44-1315-2122-005各種產品,提供整套解決方案,提供產品的全系列樣本及圖紙,歡迎來電索取。
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國TESCOM調壓閥44-1315-2122-005的疑問,請隨時與我們聯系(021-31006702)。我們將盡全力解決您的問題。
愛澤工業專業提供美國TESCOM調壓閥44-1315-2122-005全系列產品。更多產品請與我們(021-31006702)聯系,或登錄我們的網站 http://jjxdch.cn 查閱,期待與您合作!
