Introduction of MOOG Servo Valve 72 Series
MOOG 72 Series flow control servo valves are throttle valves for 3 and preferably 4-way applications. they are a high performance, 2-stage design that covers the range of rated flows from 95 to 225 l/min (25 to 60 gpm) at 35 bar (500 psi) valve pressure drop per spool land.
MOOG 72 series valves are suitable for electro-hydraulic position, speed, pressure or force control systems with high dynamic response requirements. The 72 Series is ideally suited for applications in the 95 to 225 l/min (25 to 60 gpm) when superior dynamics are a must. The 72 Series Flow Control Servo Valve consists of a polarized electrical torque motor and two stages of hydraulic power amplification. The motor armature extends into the air gaps of the magnetic flux circuit and is supported in this position by a flexure tube. The flexure tube acts as a seal between the electromagnetic and hydraulic sections of the valve.

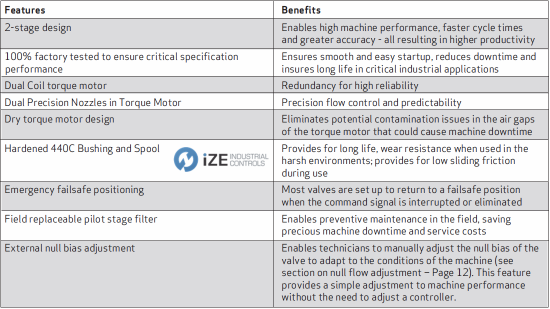

Features of MOOG Servo Valve 72 Series

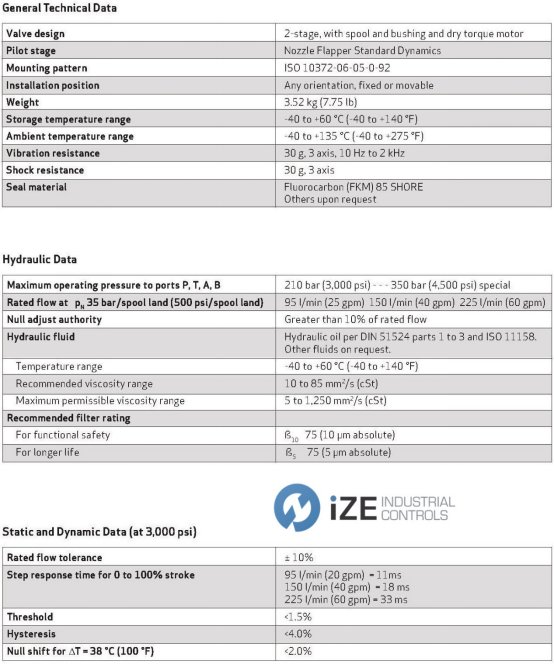

MOOG servo-proportional control valves Series 72 technical information

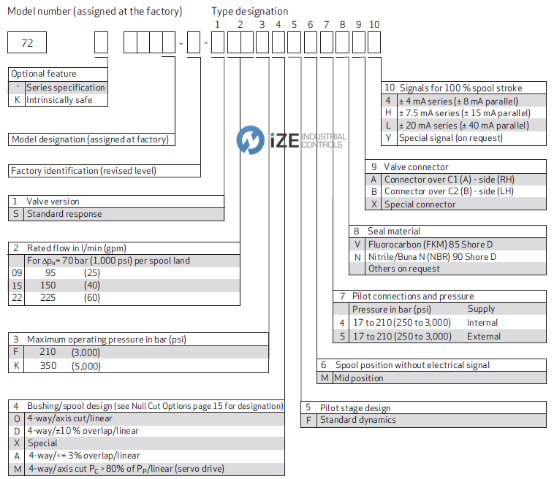

The Selection reference of MOOG servo-proportional control valves Series 72

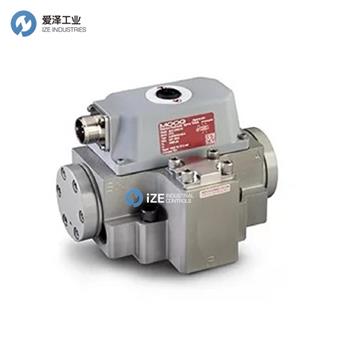

MOOG servo-proportional control valves Series 72
IZE INDUSTRIES Special Offer List of distribution and spare parts MOOG valves series:
MOOG 072-1101
MOOG 072-1102
MOOG 072-1203
MOOG 072-1201-6
MOOG 072-1202-6
MOOG 072-1202-10
MOOG 072-1203-6
IZE Industries was established in 2010 and is positioned to provide high-end manufacturing technology and equipment to advanced manufacturing industries. Acting world-class electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we leverage our global collaboration team to provide our customers with advanced solutions, market knowledge and value-added services to help optimize customer productivity, reliability and safety. Become a quality channel for industrial products and solutions.
If you have any questions about the MOOG, please feel free to contact us (021-31006702). We will do our best to solve your problem.
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
Contact information:
IZE industriaies professional agent, special sales, serious, careful, efficient service!
Contact number: 021-31006702 021-35350722
Contact fax:021-35350711
Mobile: 189 1750 1433
Email: sales@ize-industries.com
Company website: jjxdch.cn
MOOG servo-proportional control valves Series 72 technical information
