BIMBA真空泵Min系列-VP0X/VP0X-ADJ
應用：
適用于要求精確零件放置和快速零件釋放的應用的小零件拾取和放置：
集成電路
包裝機
高速貼標機
送紙器
機器人末端效應器
自動裝配
特點與優勢：
?快速響應-緊湊，輕巧，安裝在真空點附近
?無故障運行：
直通式設計，無堵塞
沒有可動部件的磨損
沒有瓣閥打開
自動清潔真空線
沒有停機時間
?高生產率-快速部件釋放，循環速率高達900 min
?模塊化設計-增加真空傳感器和電磁閥，以創建完整的真空系統
?可靠的零件檢測-工廠安裝的微型真空開關或傳感器
標準泵：

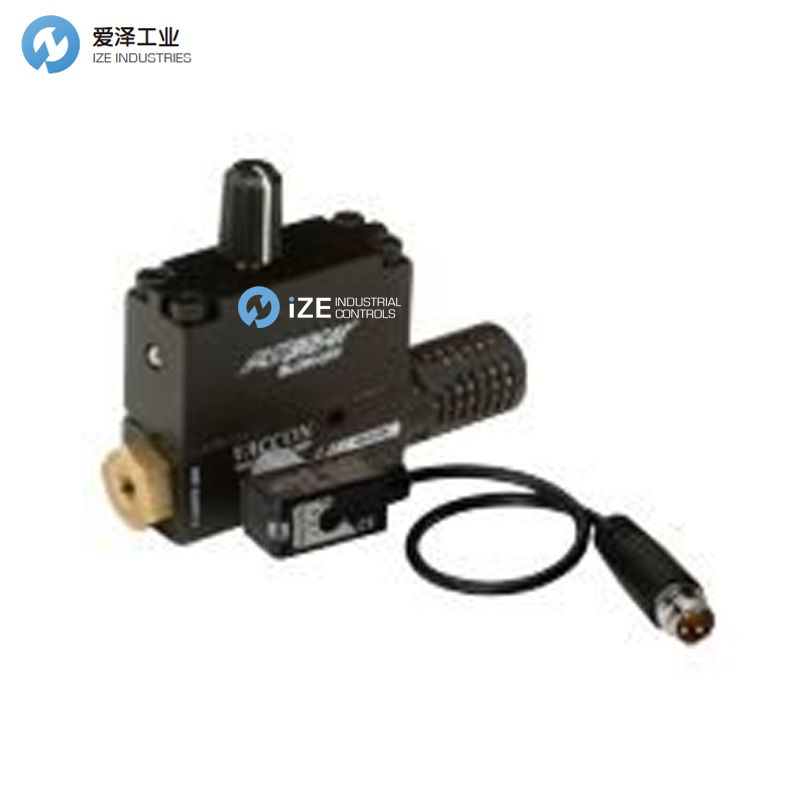

VP0X和VP0X-ADJ氣動真空泵
準確的零件放置和快速零件釋放?？煽康腇astbreak Min系列僅使用一條壓縮空氣管路即可在一臺泵中提供真空和排氣功能。無需電力。
VP0X泵的集成氣動高速吹掃可根據外殼的體積提供固定持續時間的吹掃。使用VP0X-ADJ可調式真空泵，可以使用一個指尖調節旋鈕控制吹掃強度。需要排氣的客戶提供的方向控制閥。）
績效等級指定：
對于中等真空/高流量應用，“M”0-20“Hg，[0至677mbar]
對于高真空/標準流量應用，“H”0-28“Hg，[0至948mbar]
泵選項：
?ADJ版本允許用戶設置從無吹脫到完全吹離的吹掃強度
?微型真空開關或帶快速斷開的傳感器
?ST2（直通式）消音器，允許攝入的碎屑離開泵而不會堵塞
?公制機器的G端口線程-“I”前綴表示具有公制線程的產品
?可選擇滿足機器和工廠空氣供應的操作壓力80 PSI [5.5 bar]標準，60PSI [4.1 bar]可選
VPOX和VPOX-ADJ標準泵規格：
主體材料：陽極氧化鋁，尼巴爾，黃銅，丁腈橡膠，乙烯基，尼龍，合金鋼
墨盒材質：尼龍，丁腈橡膠O形圈，
介質：過濾（50微米）無潤滑，無腐蝕性的干燥氣體
工作溫度：+ 32°至~125°F [0°至~52°C]
工作壓力：80 PSI [5.5 bar]標準或60 PSI [4.1 bar]
循環速率：高達900/min
Blow-off響應時間：瞬間
方向：任何位置
吹掃持續時間：100毫秒（基于系統設計）
VPOX和VPOX-ADJ操作和安裝要求：
墨盒尺寸：CM60（M或H）
供應線：最小5/32 [4mm]，優選的1/4“O.D。供應線超過3'（1M）的[6mm]管
控制閥：3路/2位-最小孔- 0.093“[2.5mm]
真空線：可以使用短距離優選的1/4“[6mm] 5/32”[4mm]
真空管路過濾：通常不需要真空過濾器。
安裝孔：安裝孔可接受4-40 [M3]螺釘
Ideal Applications:
Small part pick & place for applications requiring accurate part placement and rapid part release:
~ Integrated circuits
~ Packaging machines
~ High speed labeling machines
~ Sheet feeders
~ Robotic end effectors
~ Automated assembly
Features/Benefits:
? Fast Response – compact, lighweight, and installs close to vacuum point
? Trouble-free operation:
~ Straight-through design, non-clogging
~ No moving parts to wear
~ No flap valves to stick open
~ Automatically cleans vacuum lines
~ No downtime
? High productivity – rapid part release, cycle rates up to 900/min
? Modular design – add vacuum sensors and solenoid valves to create a complete vacuum system
? Reliable part detection – factory installed miniature vacuum switches or sensors
Standard Pump:
VP0X & VP0X-ADJ air-powered venturi vacuum pumps are trusted for
accurate part placement and rapid part release. The reliable Fastbreak Min Series provides both vacuum and blow-off in one pump, using only one compressed air line. No electricity required.
The integrated pneumatic high-speed blow-off on the VP0X pump provides a fixed-duration blow-off, based on the volume of the housing. With the VP0X-ADJ adjustable vacuum pump, you can control the intensity of the blow-off using one fingertip adjustment knob. (Customer-supplied directional control valve with exhaust required.)
Performance Level Designations:
“M”0-20”Hg, [0 to 677mbar] for medium vacuum /high flow applications
“H”0-28”Hg, [0 to 948mbar] for high vacuum/standard flow applications
Pump Options:
? ADJ version allows the user to set the intensity of the blow-off from no blow-off to full blow-off
? Miniature vacuum switches or sensors with quick disconnect
? ST2 (straight-through) silencer that allows ingested debris to exit the pump without clogging
? G port threads for metric machines – an “I” prefix designates products with metric threads
? Choice of operating pressures to meet machine and factory air supply 80 PSI [5.5 bar] standard, 60 PSI [4.1 bar] optional
VPOX and VPOX-ADJ Standard Pump Specifications:
Body Material: Anodized Aluminum, Nebar, Brass, Buna-N, Vinyl, Nylon, Alloy Steel
Cartridge Material: Nylon, Buna-N O-ring,
Medium: Filtered (50 Micron) unlubricated, non-corrosive dry gases
Operating Temperature: +32° to ~125° F [0° to ~52°C]
Operating Pressure: 80 PSI [5.5 bar] standard or 60 PSI [4.1 bar]
Cycle Rates: Up to 900/min
Blow-off Response Time: Instantaneous
Orientation: Any position
Blow-off Duration: 100 milliseconds (based on system design)
VPOX and VPOX-ADJ Operating and Installation Requirements:
Cartridge Size: CM60(M or H)
Supply Line: Min.5/32 [4mm], Preferred 1/4”O(jiān).D.[6mm] tube for supply lines exceeding 3’(1M)
Control Valve: 3-way/2 position–minimum orifice-0.093” [2.5mm]
Vacuum Line: Preferred 1/4” [6mm] for short runs 5/32” [4mm] may be used
Vacuum Line Filtration: Typically vacuum filters are not required.
Mounting Holes: Mounting holes accept 4-40 [M3] screws
BIMBA真空泵VP0X系列選型說明
愛澤工業(IZE INDUSTRIES)特價經銷、常用BIMBA 真空泵型號：
BIMBA真空泵VP0X-60H
BIMBA真空泵VP0X-60M
BIMBA真空泵VPOX-60M-ADJ
BIMBA真空泵VPOX-60H-ST2
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BIMBA真空泵VP0X系列 示例VP0X-60H的疑問，請隨時與我們溝通，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
有關BIMBA真空泵VP0X系列 示例VP0X-60H產品更詳細的信息或者購買美國BIMBA相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.

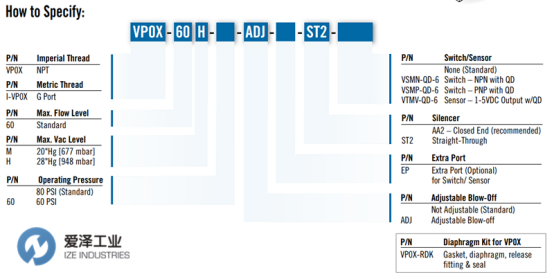

BIMBA真空泵VP0X系列技術數據及型號說明
